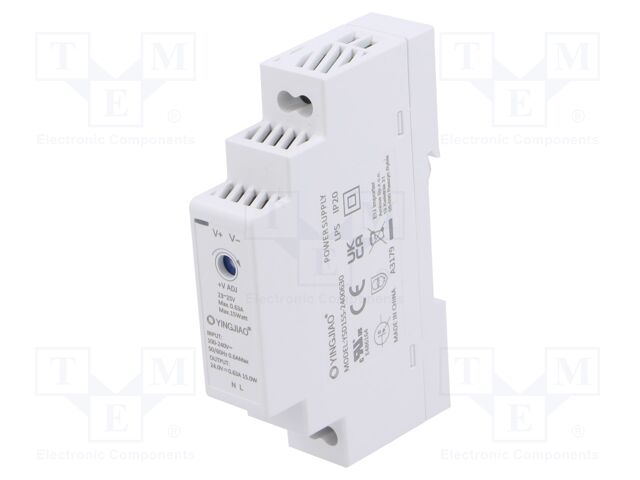

Виробник: YINGJIAO
Category: Din Rail Mounting Power Supplies
Description: Power supply: switching; for DIN rail; 15W; 24VDC; 630mA; OUT: 1
Type of power supply: switching
Kind of power supply: for DIN rail
Power: 15W
Output voltage: 24V DC
Output current: 0.63A
Supply voltage: 90...264V AC
Electrical connection: terminal block
Mounting: for DIN rail mounting
Body dimensions: 18x90x58mm
Number of outputs: 1
Operating temperature: -20...70°C
Protection: anti-overload OLP; anti-overvoltage OVP; short circuit protection SCP
Efficiency: 86%
Manufacturer series: YSD-S
Caution!: rated parameters obtained at full load

Виробник: Ideal Power Ltd.
Description: AC/DC DIN RAIL SUPPLY 24V 15W
Power (Watts): 15W
Features: Adjustable Output, IP20
Packaging: Box
Size / Dimension: 3.54" L x 0.71" W x 2.28" H (90.0mm x 18.0mm x 58.0mm)
Operating Temperature: -20°C ~ 50°C
Applications: Industrial, ITE (Commercial)
Input Type: AC
Approval Agency: BSMI, CE, EAC, TUV, UL
Efficiency: 86%
Current - Output (Max): 630mA
Voltage - Output 1: 24V
Part Status: Active
Number of Outputs: 1
Standard Number: 508; 60950-1
AC Voltage - Input: 90 ~ 264 VAC
