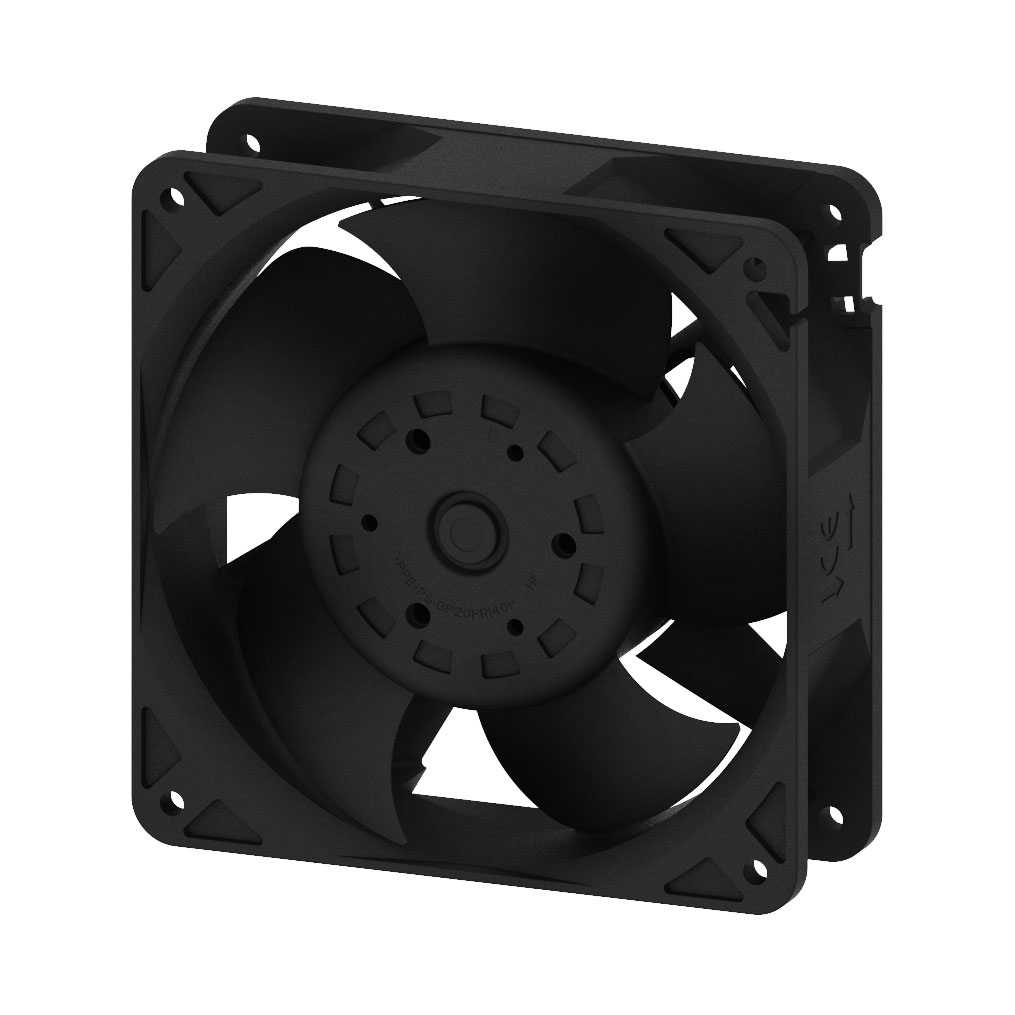

XGC0384BX-1000U-A9H Sunon Fans
![(D12038270G-00)-0.pdf](/images/adobe-acrobat.png)
Description: FAN 120X38MM 48VDC
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 48VDC
Size / Dimension: Square - 120mm L x 120mm H
Bearing Type: Ball
RPM: 11600 RPM
Air Flow: 301.7 CFM (8.45m³/min)
Width: 38.00mm
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, cURus, TUV
Fan Type: Tubeaxial
Noise: 75.0dB(A)
Static Pressure: 5.580 in H2O (1389.9 Pa)
Power (Watts): 101 W
на замовлення 205 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 5537.28 грн |
24+ | 4824.49 грн |
48+ | 4507.09 грн |
72+ | 4170.15 грн |
120+ | 3842.49 грн |
Відгуки про товар
Написати відгук
Технічний опис XGC0384BX-1000U-A9H Sunon Fans
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 120x120x38mm; 512.59m3/h; 80dBA; 141.73mmH2O, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Operating voltage: 36...60V, Fan dimensions: 120x120x38mm, Power consumption: 115.92W, Current rating: 2415mA, Fan efficiency: 512.59m3/h, Noise level: 80dBA, Kind of Bearing: ball bearing, Rotational rate/speed: 11600 (±10%)rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x2, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 141.73mm H2O, Wire size: 24AWG, кількість в упаковці: 1 шт.
Інші пропозиції XGC0384BX-1000U-A9H
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
---|---|---|---|---|---|
XGC0384BX-1000U-A9H | Виробник : SUNON |
![]() Description: Fan: DC; axial; 24VDC; 120x120x38mm; 512.59m3/h; 80dBA; 141.73mmH2O Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Operating voltage: 36...60V Fan dimensions: 120x120x38mm Power consumption: 115.92W Current rating: 2415mA Fan efficiency: 512.59m3/h Noise level: 80dBA Kind of Bearing: ball bearing Rotational rate/speed: 11600 (±10%)rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 141.73mm H2O Wire size: 24AWG кількість в упаковці: 1 шт |
товар відсутній |
||
XGC0384BX-1000U-A9H | Виробник : Sunon |
![]() |
товар відсутній |
||
XGC0384BX-1000U-A9H | Виробник : SUNON |
![]() Description: Fan: DC; axial; 24VDC; 120x120x38mm; 512.59m3/h; 80dBA; 141.73mmH2O Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Operating voltage: 36...60V Fan dimensions: 120x120x38mm Power consumption: 115.92W Current rating: 2415mA Fan efficiency: 512.59m3/h Noise level: 80dBA Kind of Bearing: ball bearing Rotational rate/speed: 11600 (±10%)rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 141.73mm H2O Wire size: 24AWG |
товар відсутній |
