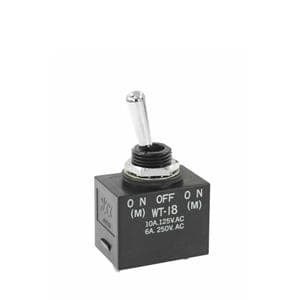

WT18S NKK Switches
Виробник: NKK Switches
Description: SWITCH TOGGLE SPDT 10A 125V
Packaging: Bulk
Features: Epoxy Sealed Terminals
Current Rating (Amps): 10A (AC/DC)
Mounting Type: Panel Mount
Circuit: SPDT
Switch Function: Mom-Off-Mom
Operating Temperature: -30°C ~ 70°C
Termination Style: Solder Lug
Illumination: Non-Illuminated
Bushing Thread: M12 x 1
Actuator Length: 17.50mm
Actuator Type: Standard Round
Ingress Protection: IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions: Circular - 12.50mm Dia
Voltage Rating - AC: 125 V
Voltage Rating - DC: 30 V
Description: SWITCH TOGGLE SPDT 10A 125V
Packaging: Bulk
Features: Epoxy Sealed Terminals
Current Rating (Amps): 10A (AC/DC)
Mounting Type: Panel Mount
Circuit: SPDT
Switch Function: Mom-Off-Mom
Operating Temperature: -30°C ~ 70°C
Termination Style: Solder Lug
Illumination: Non-Illuminated
Bushing Thread: M12 x 1
Actuator Length: 17.50mm
Actuator Type: Standard Round
Ingress Protection: IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions: Circular - 12.50mm Dia
Voltage Rating - AC: 125 V
Voltage Rating - DC: 30 V
на замовлення 79 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 1290.6 грн |
10+ | 1114.14 грн |
25+ | 1065.2 грн |
50+ | 947.95 грн |
Відгуки про товар
Написати відгук
Технічний опис WT18S NKK Switches
Category: Toggle Switches, Description: Switch: toggle; Pos: 3; SP3T; (ON)-OFF-(ON); 6A/250VAC; 10A/30VDC, Type of switch: toggle, Number of positions: 3, Contacts configuration: SP3T, Switching method: (ON)-OFF-(ON), AC contacts rating @R: 6A / 250V AC, DC contacts rating @R: 10A / 30V DC, Leads: connectors 4,8mm; for soldering, Operating temperature: -30...70°C, Kind of toggle: round, Max. contact resistance:: 10mΩ, Body dimensions: 19.4x19.4x22.3mm, Electrical life: 15000 cycles, Actuator material: brass, Min. insulation resistance: 200MΩ, Mechanical durability: 30000 cycles, Mounting: on panel, Body material: polyamide, Body colour: black, Lever plating: chromium, Illumination: none, Poles number: 1, Lever length: 17.5mm, Manufacturer series: WT, Kind of material: fiber glass reinforced, Stable positions number: 1, кількість в упаковці: 1 шт.
Інші пропозиції WT18S за ціною від 1029.07 грн до 1346.18 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WT18S | Виробник : NKK Switches | Toggle Switches (ON) OFF (ON) SPDT Solder Lug Pnel Mnt |
на замовлення 93 шт: термін постачання 21-30 дні (днів) |
|
|||||||||||
WT18S | Виробник : NKK SWITCHES |
Category: Toggle Switches Description: Switch: toggle; Pos: 3; SP3T; (ON)-OFF-(ON); 6A/250VAC; 10A/30VDC Type of switch: toggle Number of positions: 3 Contacts configuration: SP3T Switching method: (ON)-OFF-(ON) AC contacts rating @R: 6A / 250V AC DC contacts rating @R: 10A / 30V DC Leads: connectors 4,8mm; for soldering Operating temperature: -30...70°C Kind of toggle: round Max. contact resistance:: 10mΩ Body dimensions: 19.4x19.4x22.3mm Electrical life: 15000 cycles Actuator material: brass Min. insulation resistance: 200MΩ Mechanical durability: 30000 cycles Mounting: on panel Body material: polyamide Body colour: black Lever plating: chromium Illumination: none Poles number: 1 Lever length: 17.5mm Manufacturer series: WT Kind of material: fiber glass reinforced Stable positions number: 1 кількість в упаковці: 1 шт |
товар відсутній |
||||||||||||
WT18S | Виробник : NKK SWITCHES |
Category: Toggle Switches Description: Switch: toggle; Pos: 3; SP3T; (ON)-OFF-(ON); 6A/250VAC; 10A/30VDC Type of switch: toggle Number of positions: 3 Contacts configuration: SP3T Switching method: (ON)-OFF-(ON) AC contacts rating @R: 6A / 250V AC DC contacts rating @R: 10A / 30V DC Leads: connectors 4,8mm; for soldering Operating temperature: -30...70°C Kind of toggle: round Max. contact resistance:: 10mΩ Body dimensions: 19.4x19.4x22.3mm Electrical life: 15000 cycles Actuator material: brass Min. insulation resistance: 200MΩ Mechanical durability: 30000 cycles Mounting: on panel Body material: polyamide Body colour: black Lever plating: chromium Illumination: none Poles number: 1 Lever length: 17.5mm Manufacturer series: WT Kind of material: fiber glass reinforced Stable positions number: 1 |
товар відсутній |
