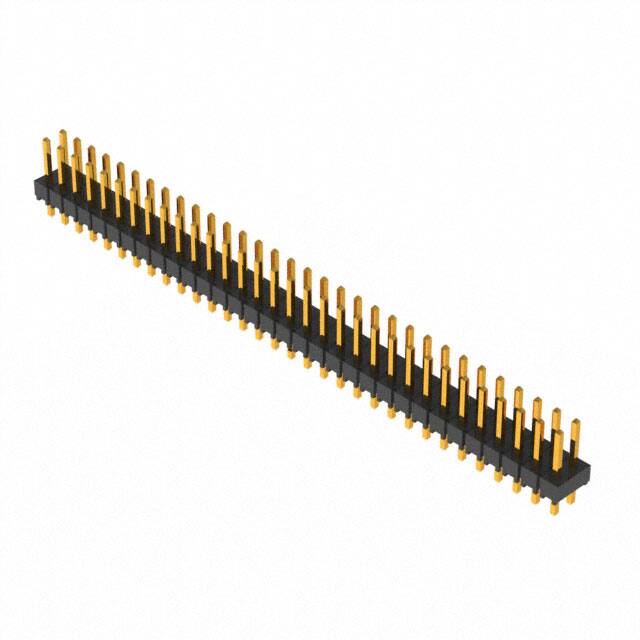

TSW-132-07-G-D-LL Samtec Inc.

Name: TSW-132-07-G-D-LL
Brand: Samtec Inc.
SKU: 2686017-3
Price: 229.57 UAH
Availability: InStock

Виробник: Samtec Inc.
Description: CONN HEADER VERT 64POS 2.54MM
Packaging: Bulk
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 64
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Kinked Pin, Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.100" (2.54mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.230" (5.84mm)

на замовлення 758 шт:

термін постачання 21-31 дні (днів)

Кількість	Ціна без ПДВ
1+	335.47 грн
25+	311.64 грн
50+	296.9 грн
100+	259.13 грн
500+	229.57 грн

Відгуки про товар

Написати відгук

Технічний опис TSW-132-07-G-D-LL Samtec Inc.

Description: CONN HEADER VERT 64POS 2.54MM, Packaging: Bulk, Connector Type: Header, Mounting Type: Through Hole, Number of Positions: 64, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Kinked Pin, Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Gold, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.100" (2.54mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Overall Contact Length: 0.430" (10.92mm), Insulation Material: Polybutylene Terephthalate (PBT), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.230" (5.84mm).
