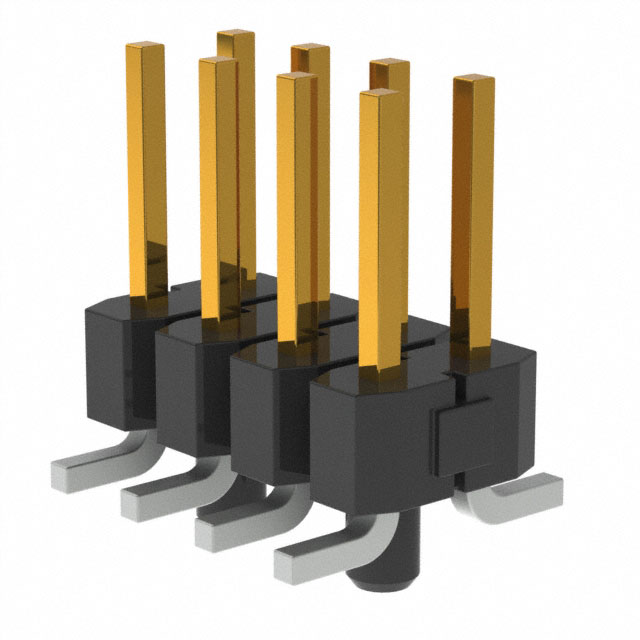

TSM-104-01-L-DV-A-P-TR Samtec Inc.
Виробник: Samtec Inc.Description: CONN HEADER SMD 8POS 2.54MM
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place
Connector Type: Header, Cuttable
Mounting Type: Surface Mount
Number of Positions: 8
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.230" (5.84mm)
на замовлення 175 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 175+ | 102.09 грн |
Відгуки про товар
Написати відгук
Технічний опис TSM-104-01-L-DV-A-P-TR Samtec Inc.
Description: CONN HEADER SMD 8POS 2.54MM, Packaging: Tape & Reel (TR), Features: Board Guide, Pick and Place, Connector Type: Header, Cuttable, Mounting Type: Surface Mount, Number of Positions: 8, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.230" (5.84mm).
Інші пропозиції TSM-104-01-L-DV-A-P-TR за ціною від 73.8 грн до 140.22 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TSM-104-01-L-DV-A-P-TR | Виробник : Samtec Inc. |
Description: CONN HEADER SMD 8POS 2.54MM Packaging: Cut Tape (CT) Features: Board Guide, Pick and Place Connector Type: Header, Cuttable Mounting Type: Surface Mount Number of Positions: 8 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.100" (2.54mm) Shrouding: Unshrouded Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.100" (2.54mm) Contact Length - Mating: 0.230" (5.84mm) |
на замовлення 602 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
 |
TSM-104-01-L-DV-A-P-TR | Виробник : Samtec |
Headers & Wire Housings .100" Surface Mount Terminal Strip |
на замовлення 1271 шт: термін постачання 21-30 дні (днів) |
|
