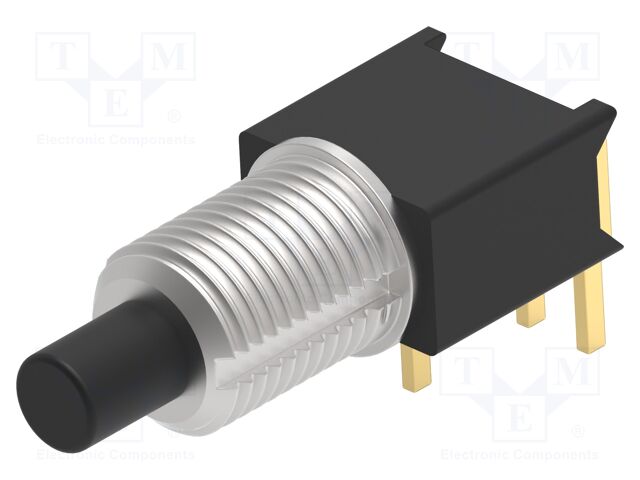

TPF11CGRA004 TE Connectivity
Виробник: TE Connectivity
Category: Standard Switches
Description: Switch: push-button; Pos: 2; SPST; 20mA/20VAC; 0.02A/20VDC; 1GΩ; THT
Operating temperature: -30...65°C
Type of switch: push-button
Contacts configuration: SPST
AC contacts rating @R: 20mA / 20V AC
DC contacts rating @R: 20mA / 20V DC
Switching method: OFF-(ON)
Stable positions number: 1
Illumination: none
Button shape: round
Button height: 4.01mm
Number of positions: 2
Mounting: THT
Mechanical durability: 100000 cycles
Max. contact resistance:: 20mΩ
Min. insulation resistance: 1GΩ
Body dimensions: 8.1x5.23x16.54mm
Leads: angled; for PCB
кількість в упаковці: 1 шт
Category: Standard Switches
Description: Switch: push-button; Pos: 2; SPST; 20mA/20VAC; 0.02A/20VDC; 1GΩ; THT
Operating temperature: -30...65°C
Type of switch: push-button
Contacts configuration: SPST
AC contacts rating @R: 20mA / 20V AC
DC contacts rating @R: 20mA / 20V DC
Switching method: OFF-(ON)
Stable positions number: 1
Illumination: none
Button shape: round
Button height: 4.01mm
Number of positions: 2
Mounting: THT
Mechanical durability: 100000 cycles
Max. contact resistance:: 20mΩ
Min. insulation resistance: 1GΩ
Body dimensions: 8.1x5.23x16.54mm
Leads: angled; for PCB
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис TPF11CGRA004 TE Connectivity
Category: Standard Switches, Description: Switch: push-button; Pos: 2; SPST; 20mA/20VAC; 0.02A/20VDC; 1GΩ; THT, Operating temperature: -30...65°C, Type of switch: push-button, Contacts configuration: SPST, AC contacts rating @R: 20mA / 20V AC, DC contacts rating @R: 20mA / 20V DC, Switching method: OFF-(ON), Stable positions number: 1, Illumination: none, Button shape: round, Button height: 4.01mm, Number of positions: 2, Mounting: THT, Mechanical durability: 100000 cycles, Max. contact resistance:: 20mΩ, Min. insulation resistance: 1GΩ, Body dimensions: 8.1x5.23x16.54mm, Leads: angled; for PCB, кількість в упаковці: 1 шт.
