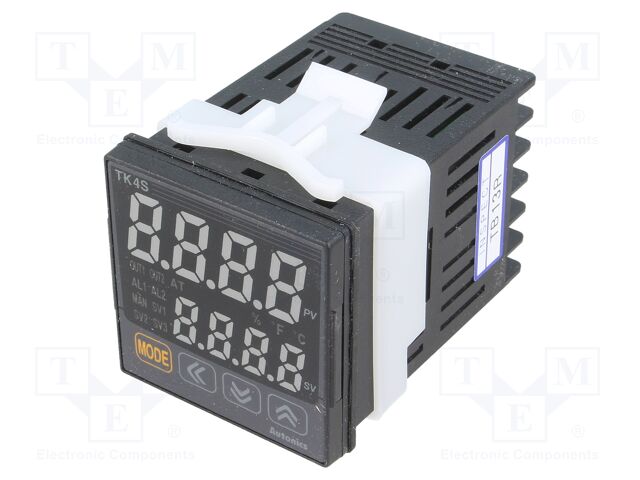

TK4S-B2RR AUTONICS

Category: Temperature Regulators, Description: Module: regulator; temperature; SPST-NO; OUT 2: SPST-NO; on panel, Type of module: regulator, Kind of temperature sensor: Cu50; Cu100; JPt100; Ni120; Pt50; Pt100; thermocouple B; thermocouple C; thermocouple E; thermocouple G; thermocouple J; thermocouple K; thermocouple L; thermocouple N; thermocouple PLII; thermocouple R; thermocouple S; thermocouple T; thermocouple U, Controlled parameter: temperature, Kind of output 1: SPST-NO, Kind of output 2: SPST-NO, Kind of output 3: alarm, Kind of output 4: alarm, Kind of input 1: 0...5V; 0...10V; 0...20mA; 0...100mV; 4...20mA; universal, Regulation for output 1: ON-OFF; P; PD; PI; PID, Mounting: on panel, Manufacturer series: TK4S, Output 1 electrical parameters: 250V AC / 3A, Output 2 electrical parameters: 250V AC / 3A, Output 3 electrical parameters: 250V AC / 3A, Output 4 electrical parameters: 250V AC / 3A, Controlled parameter range: -1999...9999, Operating temperature: -10...50°C, Supply voltage: 24V AC; 24...48V DC, The programming method: foil keypad, Body dimensions: 48x48x70.5mm, Mounting hole diameter: 45x45mm, IP rating: IP65, Input 1 properties: analogue voltage; current analog; RTD; thermocouple, Kind of display used: LED x2, Display height 1: 14mm, Display 2 height: 10mm, Additional functions: alarm signal output x2; RS485 communication output, кількість в упаковці: 1 шт.
