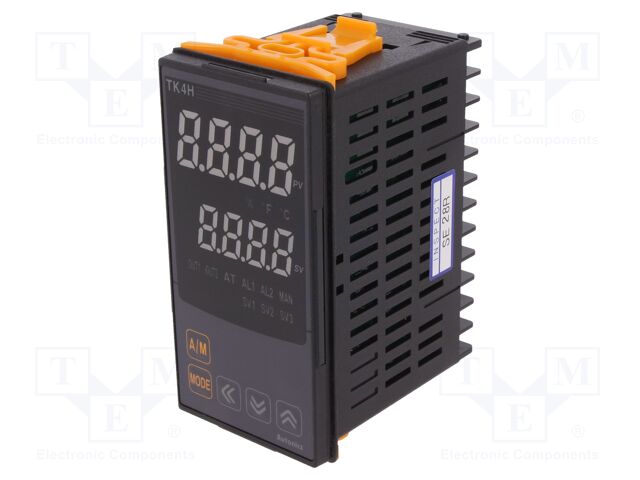

TK4H-14CR AUTONICS
Виробник: AUTONICS
Category: Temperature Regulators
Description: Module: regulator; temperature; analogue,SSR; OUT 2: SPST-NO; TK4H
Type of module: regulator
Kind of temperature sensor: Cu50; Cu100; JPt100; Ni120; Pt50; Pt100; thermocouple B; thermocouple C; thermocouple E; thermocouple G; thermocouple J; thermocouple K; thermocouple L; thermocouple N; thermocouple PLII; thermocouple R; thermocouple S; thermocouple T; thermocouple U
Controlled parameter: temperature
Kind of output 1: analogue; SSR
Kind of output 2: SPST-NO
Kind of output 3: alarm
Kind of input 1: 0...5V; 0...10V; 0...20mA; 0...100mV; 4...20mA; universal
Regulation for output 1: ON-OFF; P; PD; PI; PID
Mounting: on panel
Manufacturer series: TK4H
Output 1 electrical parameters: 0...20mA; 4...20mA; 12V DC / 20mA
Output 2 electrical parameters: 250V AC / 3A
Output 3 electrical parameters: 250V AC / 3A
Controlled parameter range: -1999...9999
Operating temperature: -10...50°C
Supply voltage: 100...240V AC
The programming method: foil keypad
Body dimensions: 48x96x70.5mm
Mounting hole diameter: 45x92mm
IP rating: IP65
Input 1 properties: analogue voltage; current analog; RTD; thermocouple
Kind of display used: LED x2
Display height 1: 14.6mm
Display 2 height: 12mm
Category: Temperature Regulators
Description: Module: regulator; temperature; analogue,SSR; OUT 2: SPST-NO; TK4H
Type of module: regulator
Kind of temperature sensor: Cu50; Cu100; JPt100; Ni120; Pt50; Pt100; thermocouple B; thermocouple C; thermocouple E; thermocouple G; thermocouple J; thermocouple K; thermocouple L; thermocouple N; thermocouple PLII; thermocouple R; thermocouple S; thermocouple T; thermocouple U
Controlled parameter: temperature
Kind of output 1: analogue; SSR
Kind of output 2: SPST-NO
Kind of output 3: alarm
Kind of input 1: 0...5V; 0...10V; 0...20mA; 0...100mV; 4...20mA; universal
Regulation for output 1: ON-OFF; P; PD; PI; PID
Mounting: on panel
Manufacturer series: TK4H
Output 1 electrical parameters: 0...20mA; 4...20mA; 12V DC / 20mA
Output 2 electrical parameters: 250V AC / 3A
Output 3 electrical parameters: 250V AC / 3A
Controlled parameter range: -1999...9999
Operating temperature: -10...50°C
Supply voltage: 100...240V AC
The programming method: foil keypad
Body dimensions: 48x96x70.5mm
Mounting hole diameter: 45x92mm
IP rating: IP65
Input 1 properties: analogue voltage; current analog; RTD; thermocouple
Kind of display used: LED x2
Display height 1: 14.6mm
Display 2 height: 12mm
на замовлення 2 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 4661.48 грн |
Відгуки про товар
Написати відгук
Технічний опис TK4H-14CR AUTONICS
Category: Temperature Regulators, Description: Module: regulator; temperature; analogue,SSR; OUT 2: SPST-NO; TK4H, Type of module: regulator, Kind of temperature sensor: Cu50; Cu100; JPt100; Ni120; Pt50; Pt100; thermocouple B; thermocouple C; thermocouple E; thermocouple G; thermocouple J; thermocouple K; thermocouple L; thermocouple N; thermocouple PLII; thermocouple R; thermocouple S; thermocouple T; thermocouple U, Controlled parameter: temperature, Kind of output 1: analogue; SSR, Kind of output 2: SPST-NO, Kind of output 3: alarm, Kind of input 1: 0...5V; 0...10V; 0...20mA; 0...100mV; 4...20mA; universal, Regulation for output 1: ON-OFF; P; PD; PI; PID, Mounting: on panel, Manufacturer series: TK4H, Output 1 electrical parameters: 0...20mA; 4...20mA; 12V DC / 20mA, Output 2 electrical parameters: 250V AC / 3A, Output 3 electrical parameters: 250V AC / 3A, Controlled parameter range: -1999...9999, Operating temperature: -10...50°C, Supply voltage: 100...240V AC, The programming method: foil keypad, Body dimensions: 48x96x70.5mm, Mounting hole diameter: 45x92mm, IP rating: IP65, Input 1 properties: analogue voltage; current analog; RTD; thermocouple, Kind of display used: LED x2, Display height 1: 14.6mm, Display 2 height: 12mm, кількість в упаковці: 1 шт.
