TJ1951030000G AMPHENOL ANYTEK
![RorAG0JTAwuM.pdf](/images/adobe-acrobat.png)
Category: Pluggable terminal blocks

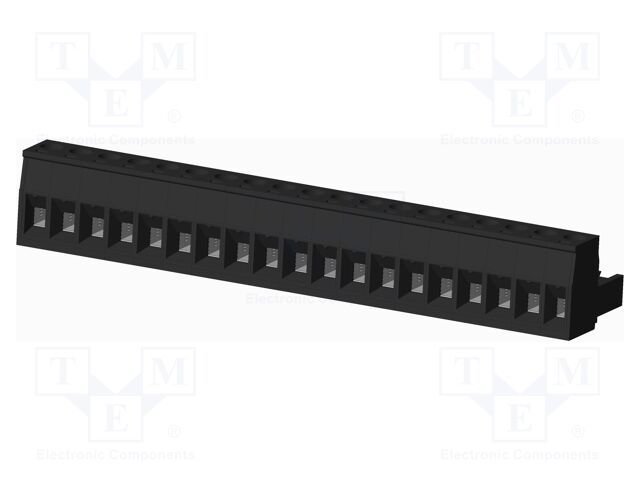

Description: Pluggable terminal block; 5.08mm; straight; plug; female; UL94V-0
Type of connector: pluggable terminal block
Contacts pitch: 5.08mm
Spatial orientation: straight
Connector: plug
Kind of connector: female
Mechanical mounting: for cable
Electrical mounting: screw terminal
Wire size: 24AWG...12AWG
Flammability rating: UL94V-0
Body material: PA66
Colour: black
Contact plating: tinned
Operating temperature: -40...115°C
Rated voltage: 300V
Number of pins: 19
Current rating: 12A
Contact material: phosphor bronze
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис TJ1951030000G AMPHENOL ANYTEK
Category: Pluggable terminal blocks, Description: Pluggable terminal block; 5.08mm; straight; plug; female; UL94V-0, Type of connector: pluggable terminal block, Contacts pitch: 5.08mm, Spatial orientation: straight, Connector: plug, Kind of connector: female, Mechanical mounting: for cable, Electrical mounting: screw terminal, Wire size: 24AWG...12AWG, Flammability rating: UL94V-0, Body material: PA66, Colour: black, Contact plating: tinned, Operating temperature: -40...115°C, Rated voltage: 300V, Number of pins: 19, Current rating: 12A, Contact material: phosphor bronze, кількість в упаковці: 1 шт.
Інші пропозиції TJ1951030000G
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
---|---|---|---|---|---|
TJ1951030000G | Виробник : Amphenol Anytek |
![]() Features: Retention Latches (Non-Wire Side) Packaging: Bulk Color: Black Mounting Type: Free Hanging (In-Line) Number of Positions: 19 Pitch: 0.200" (5.08mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screw Current - IEC: 20A Number of Levels: 1 Wire Gauge or Range - AWG: 12-24 AWG Wire Gauge or Range - mm²: 0.34-2.5mm² Positions Per Level: 19 Plug Wire Entry: 180° Contact Mating Finish: Tin Current - UL: 20 A Voltage - IEC: 300 V Voltage - UL: 300 V |
товар відсутній |
||
TJ1951030000G | Виробник : Amphenol Anytek |
![]() |
товар відсутній |
||
TJ1951030000G | Виробник : AMPHENOL ANYTEK |
![]() Description: Pluggable terminal block; 5.08mm; straight; plug; female; UL94V-0 Type of connector: pluggable terminal block Contacts pitch: 5.08mm Spatial orientation: straight Connector: plug Kind of connector: female Mechanical mounting: for cable Electrical mounting: screw terminal Wire size: 24AWG...12AWG Flammability rating: UL94V-0 Body material: PA66 Colour: black Contact plating: tinned Operating temperature: -40...115°C Rated voltage: 300V Number of pins: 19 Current rating: 12A Contact material: phosphor bronze |
товар відсутній |
