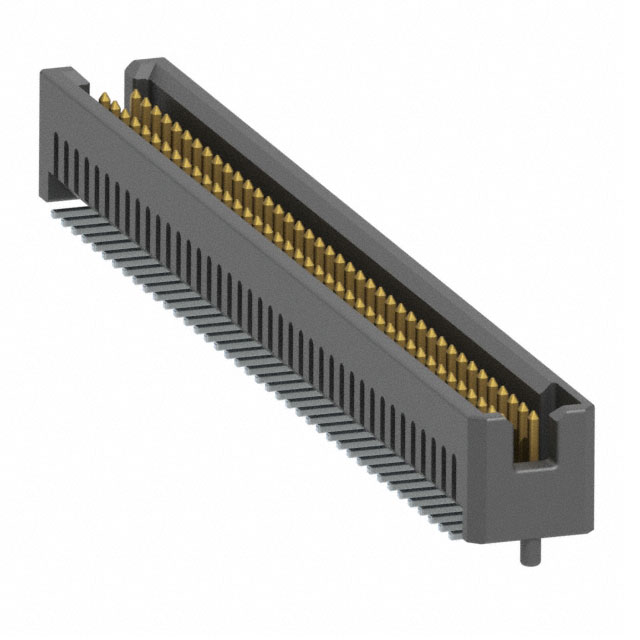

TFM-140-02-S-D-A SAMTEC
Виробник: SAMTEC
Description: SAMTEC - TFM-140-02-S-D-A - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 80 Kontakt(e)
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 80Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Produktpalette: Tiger Eye TFM
productTraceability: No
Kontaktanschluss: Oberflächenmontage
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.27mm
SVHC: No SVHC (23-Jan-2024)
Description: SAMTEC - TFM-140-02-S-D-A - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 80 Kontakt(e)
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 80Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Produktpalette: Tiger Eye TFM
productTraceability: No
Kontaktanschluss: Oberflächenmontage
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.27mm
SVHC: No SVHC (23-Jan-2024)
на замовлення 39 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 1155.3 грн |
10+ | 1066.68 грн |
25+ | 1001.79 грн |
Відгуки про товар
Написати відгук
Технічний опис TFM-140-02-S-D-A SAMTEC
Description: CONN HEADER SMD 80POS 1.27MM, Packaging: Tube, Features: Board Guide, Connector Type: Header, Voltage Rating: 275VAC, Current Rating (Amps): 2.9A per Contact, Mounting Type: Surface Mount, Number of Positions: 80, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.131" (3.33mm).
Інші пропозиції TFM-140-02-S-D-A за ціною від 1220.25 грн до 1447.49 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
TFM-140-02-S-D-A | Виробник : Samtec Inc. |
Description: CONN HEADER SMD 80POS 1.27MM Packaging: Tube Features: Board Guide Connector Type: Header Voltage Rating: 275VAC Current Rating (Amps): 2.9A per Contact Mounting Type: Surface Mount Number of Positions: 80 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.220" (5.60mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.131" (3.33mm) |
на замовлення 68 шт: термін постачання 21-31 дні (днів) |
|
|||||||
TFM-140-02-S-D-A | Виробник : Samtec | Headers & Wire Housings .050" Tiger Eye High-Reliability Terminal Strip |
на замовлення 59 шт: термін постачання 21-30 дні (днів) |
