![RD7147-25-0M7 RD7147-25-0M7](https://media.digikey.com/Photos/Schaffner%20EMC%20Photos/RD7147-25-0M7.jpg)

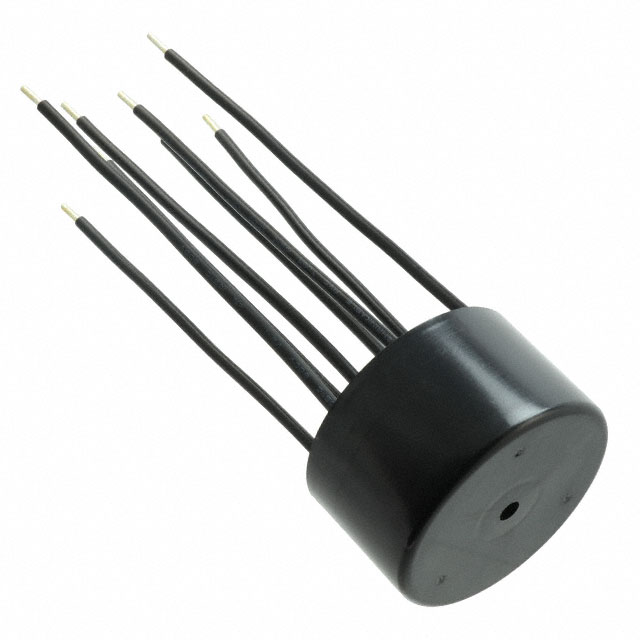

RD7147-25-0M7 Schaffner EMC Inc.
![Schaffner_datasheet_RD_series.pdf](/images/adobe-acrobat.png)
Description: CMC 700UH 25A 4LN TH
Packaging: Tray
Package / Case: Horizontal, 8 PC Pin
Filter Type: Power Line
Size / Dimension: 2.756" L x 2.756" W (70.00mm x 70.00mm)
Mounting Type: Through Hole
Number of Lines: 4
Operating Temperature: -25°C ~ 110°C
Height (Max): 1.594" (40.50mm)
Voltage Rating - AC: 600V
Voltage Rating - DC: 850V
Current Rating (Max): 25A (Typ)
DC Resistance (DCR) (Max): 3.65mOhm (Typ)
Part Status: Active
Inductance @ Frequency: 700 µH @ 1 kHz
на замовлення 2 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 2168.16 грн |
Відгуки про товар
Написати відгук
Технічний опис RD7147-25-0M7 Schaffner EMC Inc.
Description: CMC 700UH 25A 4LN TH, Packaging: Tray, Package / Case: Horizontal, 8 PC Pin, Filter Type: Power Line, Size / Dimension: 2.756" L x 2.756" W (70.00mm x 70.00mm), Mounting Type: Through Hole, Number of Lines: 4, Operating Temperature: -25°C ~ 110°C, Height (Max): 1.594" (40.50mm), Voltage Rating - AC: 600V, Voltage Rating - DC: 850V, Current Rating (Max): 25A (Typ), DC Resistance (DCR) (Max): 3.65mOhm (Typ), Part Status: Active, Inductance @ Frequency: 700 µH @ 1 kHz.
Інші пропозиції RD7147-25-0M7
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
---|---|---|---|---|---|
RD7147-25-0M7 | Виробник : SCHAFFNER |
![]() Description: Inductor: wire with current compensation; THT; 700uH; 25A; 3.65mΩ Manufacturer series: RD Dimensions: 70x40mm Operating current: 25A Resistance: 3.65mΩ Mounting: THT Kind of inductor: toroidal Type of inductor: wire with current compensation Inductance of individual winding: 700µH Operating temperature: -25...110°C Operating voltage: 600V AC; 850V DC |
товар відсутній |
||
RD7147-25-0M7 | Виробник : Schaffner |
![]() |
товар відсутній |
||
RD7147-25-0M7 | Виробник : SCHAFFNER |
![]() Description: Inductor: wire with current compensation; THT; 700uH; 25A; 3.65mΩ Manufacturer series: RD Dimensions: 70x40mm Operating current: 25A Resistance: 3.65mΩ Mounting: THT Kind of inductor: toroidal Type of inductor: wire with current compensation Inductance of individual winding: 700µH Operating temperature: -25...110°C Operating voltage: 600V AC; 850V DC |
товар відсутній |
