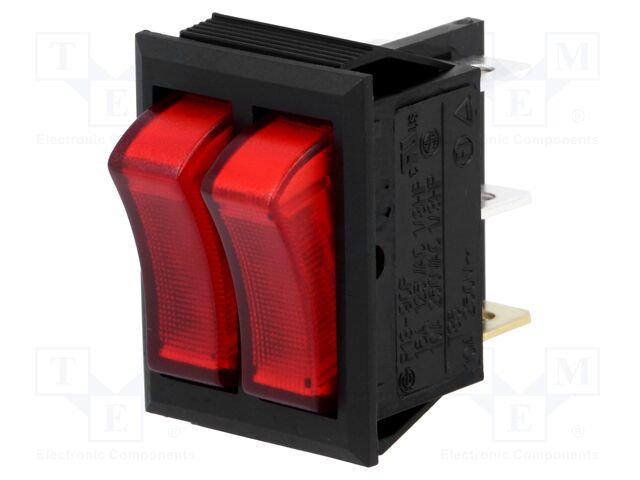

R13-90P-BB-01-BRR-N-2 SCI
Виробник: SCI
Category: Rocker Switches
Description: ROCKER; SPST x2; Pos: 2; ON-OFF + ON-OFF; 10A/250VAC; red; 50mΩ
Type of switch: ROCKER
Contacts configuration: SPST x2
Number of positions: 2
Switching method: ON-OFF + ON-OFF
AC contacts rating @R: 10A / 250V AC
Key button colour: red
Illumination: neon lamp
Backlight colour: red
Illumination voltage: 230V
Max. contact resistance:: 50mΩ
Body colour: black
Body material: polyamide
Flammability rating: UL94V-2
Operating temperature: -20...85°C
Leads: connectors 6,3x0,8mm
Panel thickness: max. 3mm
Mounting hole diameter: 30.2x22.2mm
Button marking: blank
Shape: rectangular
Body dimensions: 32x22x26.6mm
Test voltage: 1.5kV
Manufacturer series: R13-90P-AC
Stable positions number: 2
кількість в упаковці: 1 шт
Category: Rocker Switches
Description: ROCKER; SPST x2; Pos: 2; ON-OFF + ON-OFF; 10A/250VAC; red; 50mΩ
Type of switch: ROCKER
Contacts configuration: SPST x2
Number of positions: 2
Switching method: ON-OFF + ON-OFF
AC contacts rating @R: 10A / 250V AC
Key button colour: red
Illumination: neon lamp
Backlight colour: red
Illumination voltage: 230V
Max. contact resistance:: 50mΩ
Body colour: black
Body material: polyamide
Flammability rating: UL94V-2
Operating temperature: -20...85°C
Leads: connectors 6,3x0,8mm
Panel thickness: max. 3mm
Mounting hole diameter: 30.2x22.2mm
Button marking: blank
Shape: rectangular
Body dimensions: 32x22x26.6mm
Test voltage: 1.5kV
Manufacturer series: R13-90P-AC
Stable positions number: 2
кількість в упаковці: 1 шт
