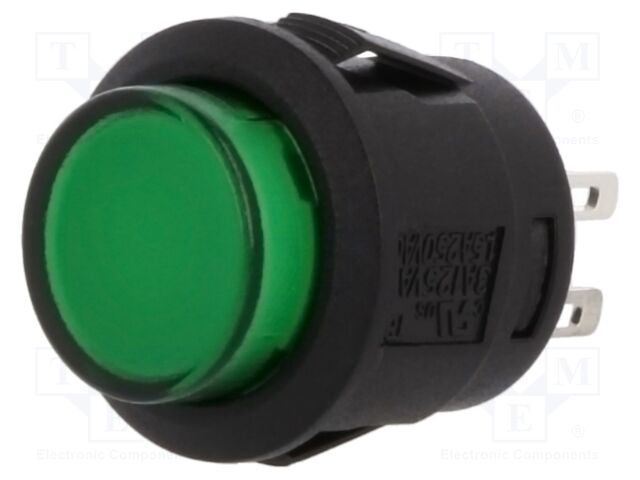

R13-523AL-05-BG-L-1 SCI
Виробник: SCI
Category: Standard Switches
Description: Switch: push-button; Pos: 2; SPST-NO; 1.5A/250VAC; OFF-(ON); green
Mounting: on panel
Switching method: OFF-(ON)
Operating temperature: -25...70°C
Manufacturer series: R13-523
Leads: for soldering
Type of switch: push-button
Contacts configuration: SPST-NO
AC contacts rating @R: 1.5A / 250V AC
Terminals plating: silver plated
Stable positions number: 1
Illumination: LED
Illumination voltage: 12V DC
Actuator colour: green
Backlight colour: green
Button shape: round
Number of positions: 2
Panel thickness: max. 3mm
Max. contact resistance:: 50mΩ
Body dimensions: Ø18x13mm
Enclosure material: PBT
Mounting hole diameter: Ø16mm
AC test voltage: 1.5kV
Flammability rating: UL94V-2
кількість в упаковці: 1 шт
Category: Standard Switches
Description: Switch: push-button; Pos: 2; SPST-NO; 1.5A/250VAC; OFF-(ON); green
Mounting: on panel
Switching method: OFF-(ON)
Operating temperature: -25...70°C
Manufacturer series: R13-523
Leads: for soldering
Type of switch: push-button
Contacts configuration: SPST-NO
AC contacts rating @R: 1.5A / 250V AC
Terminals plating: silver plated
Stable positions number: 1
Illumination: LED
Illumination voltage: 12V DC
Actuator colour: green
Backlight colour: green
Button shape: round
Number of positions: 2
Panel thickness: max. 3mm
Max. contact resistance:: 50mΩ
Body dimensions: Ø18x13mm
Enclosure material: PBT
Mounting hole diameter: Ø16mm
AC test voltage: 1.5kV
Flammability rating: UL94V-2
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис R13-523AL-05-BG-L-1 SCI
Category: Standard Switches, Description: Switch: push-button; Pos: 2; SPST-NO; 1.5A/250VAC; OFF-(ON); green, Mounting: on panel, Switching method: OFF-(ON), Operating temperature: -25...70°C, Manufacturer series: R13-523, Leads: for soldering, Type of switch: push-button, Contacts configuration: SPST-NO, AC contacts rating @R: 1.5A / 250V AC, Terminals plating: silver plated, Stable positions number: 1, Illumination: LED, Illumination voltage: 12V DC, Actuator colour: green, Backlight colour: green, Button shape: round, Number of positions: 2, Panel thickness: max. 3mm, Max. contact resistance:: 50mΩ, Body dimensions: Ø18x13mm, Enclosure material: PBT, Mounting hole diameter: Ø16mm, AC test voltage: 1.5kV, Flammability rating: UL94V-2, кількість в упаковці: 1 шт.
