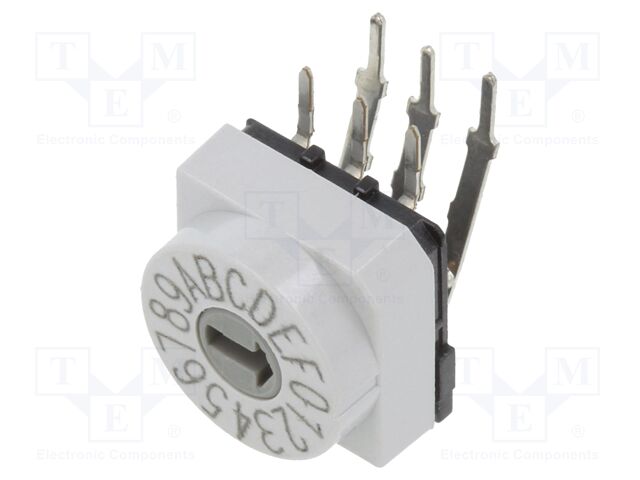

PT65106L254 PTR HARTMANN
Виробник: PTR HARTMANN
Category: Encoding Switches
Description: Encoding switch; HEX/BCD; Pos: 16; THT; Rcont max: 80mΩ; PT65
Type of switch: encoding switch
Kind of encoding switch: HEX/BCD
Number of positions: 16
Operating temperature: -20...70°C
Mounting: THT
Leads: angled; for PCB
Max. contact resistance:: 80mΩ
DC contacts rating @R: 1µA / 20mV DC
Min. insulation resistance: 0.1GΩ
Terminal pitch: 2.54mm
Switches features: without knob
Body dimensions: 10x10x6.8mm
Manufacturer series: PT65
Stable positions number: 16
Category: Encoding Switches
Description: Encoding switch; HEX/BCD; Pos: 16; THT; Rcont max: 80mΩ; PT65
Type of switch: encoding switch
Kind of encoding switch: HEX/BCD
Number of positions: 16
Operating temperature: -20...70°C
Mounting: THT
Leads: angled; for PCB
Max. contact resistance:: 80mΩ
DC contacts rating @R: 1µA / 20mV DC
Min. insulation resistance: 0.1GΩ
Terminal pitch: 2.54mm
Switches features: without knob
Body dimensions: 10x10x6.8mm
Manufacturer series: PT65
Stable positions number: 16
на замовлення 236 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
2+ | 258.92 грн |
7+ | 136.15 грн |
18+ | 128.9 грн |
Відгуки про товар
Написати відгук
Технічний опис PT65106L254 PTR HARTMANN
Category: Encoding Switches, Description: Encoding switch; HEX/BCD; Pos: 16; THT; Rcont max: 80mΩ; PT65, Type of switch: encoding switch, Kind of encoding switch: HEX/BCD, Number of positions: 16, Operating temperature: -20...70°C, Mounting: THT, Leads: angled; for PCB, Max. contact resistance:: 80mΩ, DC contacts rating @R: 1µA / 20mV DC, Min. insulation resistance: 0.1GΩ, Terminal pitch: 2.54mm, Switches features: without knob, Body dimensions: 10x10x6.8mm, Manufacturer series: PT65, Stable positions number: 16, кількість в упаковці: 1 шт.
Інші пропозиції PT65106L254 за ціною від 154.69 грн до 978.12 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PT65106L254 | Виробник : PTR HARTMANN |
Category: Encoding Switches Description: Encoding switch; HEX/BCD; Pos: 16; THT; Rcont max: 80mΩ; PT65 Type of switch: encoding switch Kind of encoding switch: HEX/BCD Number of positions: 16 Operating temperature: -20...70°C Mounting: THT Leads: angled; for PCB Max. contact resistance:: 80mΩ DC contacts rating @R: 1µA / 20mV DC Min. insulation resistance: 0.1GΩ Terminal pitch: 2.54mm Switches features: without knob Body dimensions: 10x10x6.8mm Manufacturer series: PT65 Stable positions number: 16 кількість в упаковці: 1 шт |
на замовлення 236 шт: термін постачання 14-21 дні (днів) |
|
|||||||||||||||||
PT65106L254 | Виробник : APEM Inc. |
Description: SW ROTARY DIP HEX COMP 0.15A 24V Features: Sealed - Flux Protection Packaging: Tube Contact Finish: Gold Voltage Rating: 24VDC Current Rating (Amps): 150mA Mounting Type: Through Hole, Right Angle Pitch: 0.100" (2.54mm), Full Circuit: Hexadecimal Complement Operating Temperature: -20°C ~ 70°C Termination Style: PC Pin Actuator Type: Rotary for Tool Height Above Board: 0.394" (10.00mm) Actuator Level: Flush, Recessed Washable: Yes Contact Material: Phosphor Bronze Part Status: Active Number of Positions: 16 |
на замовлення 5577 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||
PT65106L254 | Виробник : Apem | Coded Rotary Switches 16POS 0.15A 24VDC |
на замовлення 3 шт: термін постачання 21-30 дні (днів) |
|
|||||||||||||||||
PT65106L254 | Виробник : APEM Components | Switch DIP N.O./N.C. SP16T 16 Flush Screwdriver 0.15A 42VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube |
на замовлення 1070 шт: термін постачання 21-31 дні (днів) |
|
