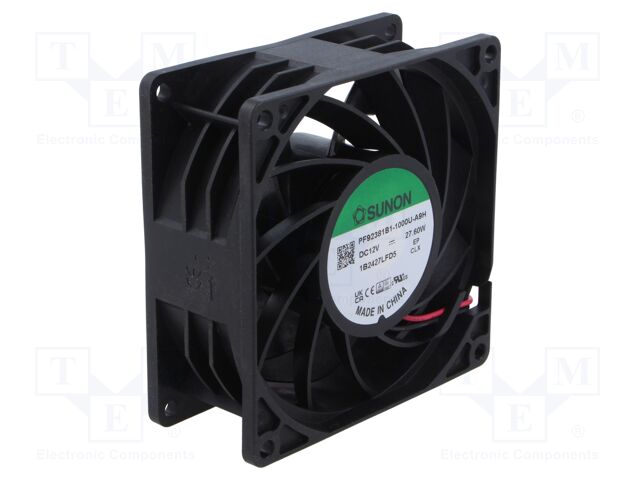

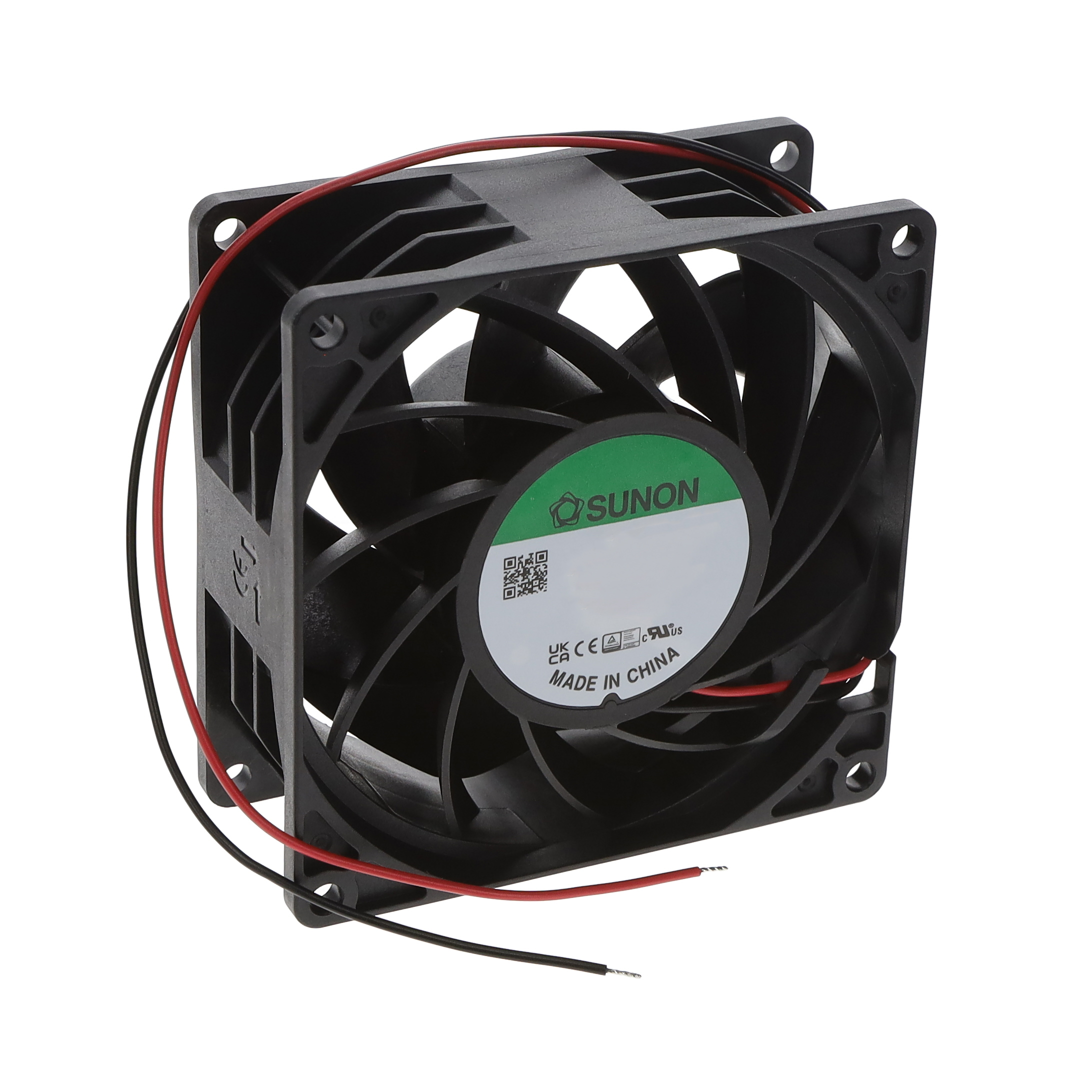

PF92381B1-1000U-A9H Sunon Fans
![(D09052980G-00)-0.pdf](/images/adobe-acrobat.png)
Description: FAN 60X38MM 12VDC
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 12VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Ball
RPM: 9300 RPM
Air Flow: 138.1 CFM (3.87m³/min)
Width: 38.00mm
Termination: 2 Wire Leads
Approval Agency: CCC, CE, cURus, TUV
Fan Type: Tubeaxial
Noise: 62.9dB(A)
Static Pressure: 1.950 in H2O (485.7 Pa)
Power (Watts): 22.2 W
на замовлення 200 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 2287.75 грн |
10+ | 2012.15 грн |
25+ | 1935.76 грн |
50+ | 1697.13 грн |
100+ | 1565.66 грн |
Відгуки про товар
Написати відгук
Технічний опис PF92381B1-1000U-A9H Sunon Fans
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 92x92x38mm; 234.63m3/h; 68.5dBA; 49.53mmH2O, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 8...13.2V, Fan dimensions: 92x92x38mm, Power consumption: 25.54W, Current rating: 2128mA, Fan efficiency: 234.63m3/h, Noise level: 68.5dBA, Kind of Bearing: ball bearing, Rotational rate/speed: 9300 (±10%)rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x2, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 49.53mm H2O, Wire size: 24AWG, кількість в упаковці: 1 шт.
Інші пропозиції PF92381B1-1000U-A9H
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
---|---|---|---|---|---|
PF92381B1-1000U-A9H | Виробник : SUNON |
![]() Description: Fan: DC; axial; 12VDC; 92x92x38mm; 234.63m3/h; 68.5dBA; 49.53mmH2O Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 8...13.2V Fan dimensions: 92x92x38mm Power consumption: 25.54W Current rating: 2128mA Fan efficiency: 234.63m3/h Noise level: 68.5dBA Kind of Bearing: ball bearing Rotational rate/speed: 9300 (±10%)rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 49.53mm H2O Wire size: 24AWG кількість в упаковці: 1 шт |
товар відсутній |
||
PF92381B1-1000U-A9H | Виробник : Sunon |
![]() |
товар відсутній |
||
PF92381B1-1000U-A9H | Виробник : SUNON |
![]() Description: Fan: DC; axial; 12VDC; 92x92x38mm; 234.63m3/h; 68.5dBA; 49.53mmH2O Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 8...13.2V Fan dimensions: 92x92x38mm Power consumption: 25.54W Current rating: 2128mA Fan efficiency: 234.63m3/h Noise level: 68.5dBA Kind of Bearing: ball bearing Rotational rate/speed: 9300 (±10%)rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 49.53mm H2O Wire size: 24AWG |
товар відсутній |
