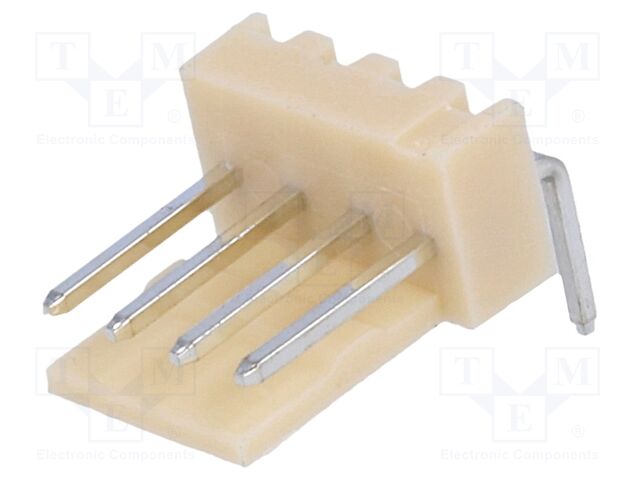

NS25-W4K NINIGI
Виробник: NINIGI
Category: Raster signal connectors 2,54mm
Description: Connector: wire-board; socket; male; NS25; 2.54mm; PIN: 4; THT; 250V
Type of connector: wire-board
Connector: socket
Connector series: NS25
Kind of connector: male
Number of pins: 4
Spatial orientation: angled 90°
Contacts pitch: 2.54mm
Electrical mounting: THT
Connector pinout layout: 1x4
Contact plating: tinned
Leads dimensions: 0.64x0.64x3.3mm
Max. contact resistance:: 10mΩ
Rated voltage: 0.25kV
Current rating: 3A
Flammability rating: UL94V-0
Operating temperature: -25...85°C
A dimension: 10.16mm
B dimension: 7.62mm
Enclosure material: polyamide
Category: Raster signal connectors 2,54mm
Description: Connector: wire-board; socket; male; NS25; 2.54mm; PIN: 4; THT; 250V
Type of connector: wire-board
Connector: socket
Connector series: NS25
Kind of connector: male
Number of pins: 4
Spatial orientation: angled 90°
Contacts pitch: 2.54mm
Electrical mounting: THT
Connector pinout layout: 1x4
Contact plating: tinned
Leads dimensions: 0.64x0.64x3.3mm
Max. contact resistance:: 10mΩ
Rated voltage: 0.25kV
Current rating: 3A
Flammability rating: UL94V-0
Operating temperature: -25...85°C
A dimension: 10.16mm
B dimension: 7.62mm
Enclosure material: polyamide
на замовлення 96070 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
70+ | 6.29 грн |
80+ | 4.86 грн |
200+ | 3.53 грн |
570+ | 1.52 грн |
1560+ | 1.44 грн |
Відгуки про товар
Написати відгук
Технічний опис NS25-W4K NINIGI
Category: Raster signal connectors 2,54mm, Description: Connector: wire-board; socket; male; NS25; 2.54mm; PIN: 4; THT; 250V, Type of connector: wire-board, Connector: socket, Connector series: NS25, Kind of connector: male, Number of pins: 4, Spatial orientation: angled 90°, Contacts pitch: 2.54mm, Electrical mounting: THT, Connector pinout layout: 1x4, Contact plating: tinned, Leads dimensions: 0.64x0.64x3.3mm, Max. contact resistance:: 10mΩ, Rated voltage: 0.25kV, Current rating: 3A, Flammability rating: UL94V-0, Operating temperature: -25...85°C, A dimension: 10.16mm, B dimension: 7.62mm, Enclosure material: polyamide, кількість в упаковці: 10 шт.
Інші пропозиції NS25-W4K за ціною від 1.73 грн до 7.55 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NS25-W4K | Виробник : NINIGI |
Category: Raster signal connectors 2,54mm Description: Connector: wire-board; socket; male; NS25; 2.54mm; PIN: 4; THT; 250V Type of connector: wire-board Connector: socket Connector series: NS25 Kind of connector: male Number of pins: 4 Spatial orientation: angled 90° Contacts pitch: 2.54mm Electrical mounting: THT Connector pinout layout: 1x4 Contact plating: tinned Leads dimensions: 0.64x0.64x3.3mm Max. contact resistance:: 10mΩ Rated voltage: 0.25kV Current rating: 3A Flammability rating: UL94V-0 Operating temperature: -25...85°C A dimension: 10.16mm B dimension: 7.62mm Enclosure material: polyamide кількість в упаковці: 10 шт |
на замовлення 96070 шт: термін постачання 14-21 дні (днів) |
|
|||||||||||||
NS25-W4K | Виробник : Ninigi | WH-4R Вилка в плату угл. 4 конт шаг 2.54 мм |
на замовлення 4 шт: термін постачання 5 дні (днів) |
