![MSO-2102EA MSO-2102EA](https://ce8dc832c.cloudimg.io/v7/_cdn_/9B/81/80/00/0/530617_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=51e453df6079dffb32772e0cfae505d8be408ef7)

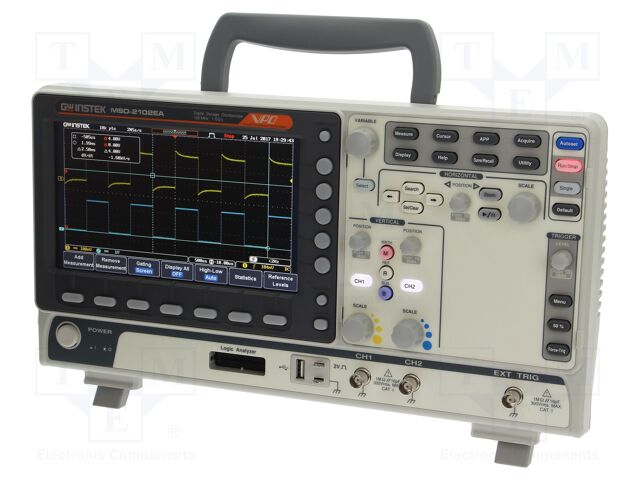

MSO-2102EA GW INSTEK
![PDF_BH_MSO-2000Series_E.pdf](/images/adobe-acrobat.png)
Category: Digital Oscilloscopes
Description: Oscilloscope: mixed signal; Ch: 2; 100MHz; 1Gsps; 10Mpts; MSO-2000E
Type of oscilloscope: mixed signal
Number of channels: 2
Band: 100MHz
Sampling: 1Gsps
Memory record length: 10Mpts
Kind of display used: LCD TFT 8"
Trigger modes: automatic; normal; single
Time base: 1n...100s/div
Max. input voltage: 300V
Vertical resolution: 8bit
Input coupling: AC, DC, GND
Trigger coupling: AC; DC; highpass; lowpass
Interface: LAN; USB
Manufacturer series: MSO-2000E
Rise time: ≤3.5ns
Input impedance: 1MΩ/16pF
Input sensitivity: 1mV/div...10V/div
Additional functions: arbitrary waveform generator
Measuring instrument features: automatic measurement of many parameters; AUTOSET function for setting display parameters (time base, gain); background noise filter; protocols analyse: CAN/LIN; protocols analyse: I2C, SPI, UART
Standard equipment: mains cable; manual (CD); oscilloscope probe (1 per channel); probe GTL-16E
Dimensions: 384x208x127.3mm
Display resolution: 800x480
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис MSO-2102EA GW INSTEK
Category: Digital Oscilloscopes, Description: Oscilloscope: mixed signal; Ch: 2; 100MHz; 1Gsps; 10Mpts; MSO-2000E, Type of oscilloscope: mixed signal, Number of channels: 2, Band: 100MHz, Sampling: 1Gsps, Memory record length: 10Mpts, Kind of display used: LCD TFT 8", Trigger modes: automatic; normal; single, Time base: 1n...100s/div, Max. input voltage: 300V, Vertical resolution: 8bit, Input coupling: AC, DC, GND, Trigger coupling: AC; DC; highpass; lowpass, Interface: LAN; USB, Manufacturer series: MSO-2000E, Rise time: ≤3.5ns, Input impedance: 1MΩ/16pF, Input sensitivity: 1mV/div...10V/div, Additional functions: arbitrary waveform generator, Measuring instrument features: automatic measurement of many parameters; AUTOSET function for setting display parameters (time base, gain); background noise filter; protocols analyse: CAN/LIN; protocols analyse: I2C, SPI, UART, Standard equipment: mains cable; manual (CD); oscilloscope probe (1 per channel); probe GTL-16E, Dimensions: 384x208x127.3mm, Display resolution: 800x480, кількість в упаковці: 1 шт.
