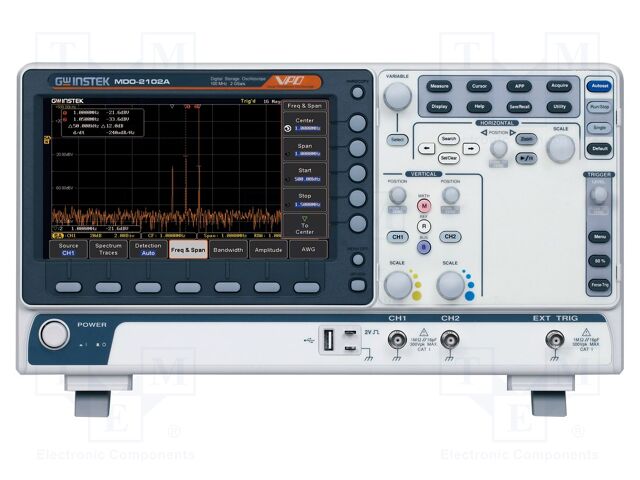

MDO-2102A GW INSTEK
![MDO-2000A.pdf](/images/adobe-acrobat.png)
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; MDO; Ch: 2; 100MHz; 2Gsps (in real time)
Input impedance: 1MΩ/16pF
Dimensions: 384x208x127.3mm
Standard equipment: cable BNC-BNC x2; mains cable; oscilloscope probe (1 per channel); test leads; test leads with crocodile clips
Additional functions: spectrum analyzer
Measuring instrument features: 20 sets memory; EF function - electrical field detecion; mask testing; mathematical functions: addition, subtraction, division, multiplication and FFT; segmented memory function; support I2C, SPI, UART, CAN, LIN BUS trigger and decoding functions; Y-T, X-Y, ROLL operation mode
Sampling: 2Gsps (in real time)
Type of oscilloscope: digital
Trigger: alternative; bus; falling-edge; glitch; rising-edge; runt; video signal; with delay
Input coupling: AC, DC, GND
Vertical resolution: 8bit
Trigger modes: automatic; normal; single
Trigger coupling: AC; DC; highpass; lowpass
Max. input voltage: 300V
Manufacturer series: MDO-2000A
Kind of oscilloscope: MDO
Band: 100MHz
Rise time: ≤3.5ns
Input sensitivity: 1mV/div...10V/div
Time base: 1n...100s/div
Memory record length: 20Mpts/ch
Kind of display used: LCD TFT 8"
Supply voltage: 100...240V AC
Interface: Go/NoGo BNC; LAN; USB 2.0 host; USB device
Number of channels: 2
Measurement memory: 24
Display resolution: 800x480
на замовлення 1 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 70311.06 грн |
Відгуки про товар
Написати відгук
Технічний опис MDO-2102A GW INSTEK
Category: Digital Oscilloscopes, Description: Oscilloscope: digital; MDO; Ch: 2; 100MHz; 2Gsps (in real time), Input impedance: 1MΩ/16pF, Dimensions: 384x208x127.3mm, Standard equipment: cable BNC-BNC x2; mains cable; oscilloscope probe (1 per channel); test leads; test leads with crocodile clips, Additional functions: spectrum analyzer, Measuring instrument features: 20 sets memory; EF function - electrical field detecion; mask testing; mathematical functions: addition, subtraction, division, multiplication and FFT; segmented memory function; support I2C, SPI, UART, CAN, LIN BUS trigger and decoding functions; Y-T, X-Y, ROLL operation mode, Sampling: 2Gsps (in real time), Type of oscilloscope: digital, Trigger: alternative; bus; falling-edge; glitch; rising-edge; runt; video signal; with delay, Input coupling: AC, DC, GND, Vertical resolution: 8bit, Trigger modes: automatic; normal; single, Trigger coupling: AC; DC; highpass; lowpass, Max. input voltage: 300V, Manufacturer series: MDO-2000A, Kind of oscilloscope: MDO, Band: 100MHz, Rise time: ≤3.5ns, Input sensitivity: 1mV/div...10V/div, Time base: 1n...100s/div, Memory record length: 20Mpts/ch, Kind of display used: LCD TFT 8", Supply voltage: 100...240V AC, Interface: Go/NoGo BNC; LAN; USB 2.0 host; USB device, Number of channels: 2, Measurement memory: 24, Display resolution: 800x480, кількість в упаковці: 1 шт.
