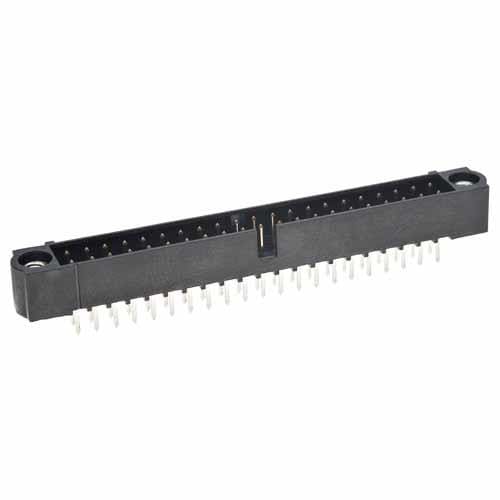

M80-5004242 Harwin Inc.
Виробник: Harwin Inc.Description: CONN HEADER VERT 42POS 2MM
Features: Keying Slot, Mating Flange
Packaging: Tube
Connector Type: Header
Voltage Rating: 120V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 42
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.128" (3.25mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
на замовлення 316 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 1052.27 грн |
| 10+ | 897.95 грн |
| 100+ | 782.85 грн |
Відгуки про товар
Написати відгук
Технічний опис M80-5004242 Harwin Inc.
Description: CONN HEADER VERT 42POS 2MM, Features: Keying Slot, Mating Flange, Packaging: Tube, Connector Type: Header, Voltage Rating: 120V, Current Rating (Amps): 2.2A, Mounting Type: Through Hole, Number of Positions: 42, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Threaded, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.128" (3.25mm), Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
Інші пропозиції M80-5004242 за ціною від 767.26 грн до 1157.76 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M80-5004242 | Виробник : HARWIN |
Description: HARWIN - M80-5004242 - Stiftleiste, Dual In-Line, Wire-to-Board, 2 mm, 2 Reihe(n), 42 Kontakt(e) tariffCode: 85366990 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Berylliumkupfer usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 42Contacts euEccn: NLR Steckverbindersysteme: Wire-to-Board Produktpalette: Datamate J-Tek M80-5 productTraceability: No Kontaktanschluss: Durchsteckmontage, gerade Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm SVHC: No SVHC (23-Jan-2024) |
на замовлення 5 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
 |
M80-5004242 | Виробник : Harwin |
Headers & Wire Housings 21+21 POS VERT MALE 3mm TAIL W/JS TIN |
на замовлення 2 шт: термін постачання 21-30 дні (днів) |
|
