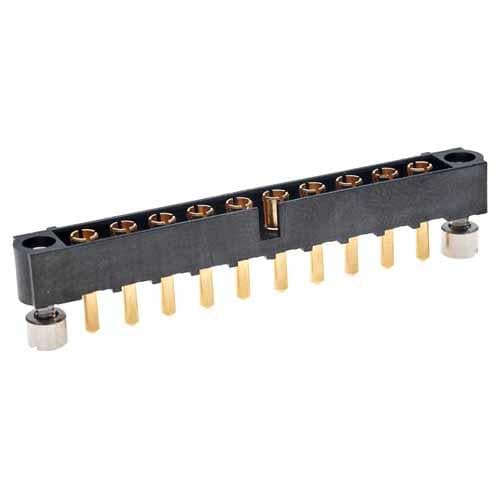

M80-5000000M3-10-332-00-000 Harwin

Description: CONN HEADER VERT 10POS 4MM, Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware, Packaging: Bag, Connector Type: Header, Voltage Rating: 800V, Current Rating (Amps): 20A, Mounting Type: Through Hole, Number of Positions: 10, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Power, Fastening Type: Threaded, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.157" (4.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.197" (5.00mm), Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled.
