![M20-9971046 M20-9971046](https://ce8dc832c.cloudimg.io/v7/_cdn_/F1/CD/E0/00/0/973855_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=7cf5dc1f62759e9b322c747f38f025114627ae6a)

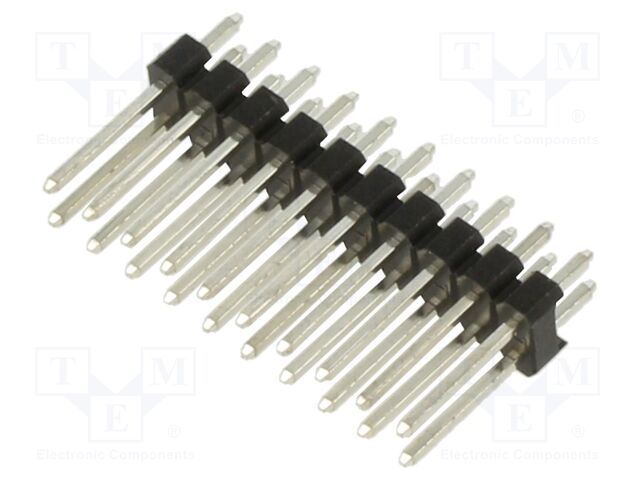

M20-9971046 HARWIN
![M20-9971046.pdf](/images/adobe-acrobat.png)
Category: Raster signal connectors 2,54mm
Description: Pin header; pin strips; male; 2.54mm; PIN: 20; THT; on PCBs; tinned
Connector: pin header
Type of connector: pin strips
Kind of connector: male
Number of pins: 20
Contacts pitch: 2.54mm
Electrical mounting: THT
Mechanical mounting: on PCBs
Contact plating: tinned
Connector pinout layout: 2x10
Spatial orientation: straight
на замовлення 12 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
9+ | 48.8 грн |
Відгуки про товар
Написати відгук
Технічний опис M20-9971046 HARWIN
Description: CONN HEADER VERT 20POS 2.54MM, Packaging: Bulk, Connector Type: Header, Cuttable, Current Rating (Amps): 3A per Contact, Mounting Type: Through Hole, Number of Positions: 20, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.116" (2.95mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Overall Contact Length: 0.551" (14.00mm), Insulation Material: Polyamide (PA6T), Nylon 6T, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.335" (8.51mm).
Інші пропозиції M20-9971046 за ціною від 34.77 грн до 88.19 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
M20-9971046 | Виробник : HARWIN |
![]() Description: Pin header; pin strips; male; 2.54mm; PIN: 20; THT; on PCBs; tinned Connector: pin header Type of connector: pin strips Kind of connector: male Number of pins: 20 Contacts pitch: 2.54mm Electrical mounting: THT Mechanical mounting: on PCBs Contact plating: tinned Connector pinout layout: 2x10 Spatial orientation: straight кількість в упаковці: 1 шт |
на замовлення 12 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||||
![]() |
M20-9971046 | Виробник : HARWIN |
![]() tariffCode: 85366990 rohsCompliant: YES Kontaktüberzug: Verzinnte Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Ohne Kragen Anzahl der Kontakte: 20Contacts euEccn: NLR Steckverbindersysteme: Board-to-Board Produktpalette: M20 productTraceability: No Kontaktanschluss: Durchsteckmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 2.54mm SVHC: No SVHC (23-Jan-2024) |
на замовлення 594 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
![]() |
M20-9971046 | Виробник : Harwin Inc. |
![]() Packaging: Bulk Connector Type: Header, Cuttable Current Rating (Amps): 3A per Contact Mounting Type: Through Hole Number of Positions: 20 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -40°C ~ 105°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Brass Insulation Color: Black Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Tin Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.116" (2.95mm) Insulation Height: 0.100" (2.54mm) Shrouding: Unshrouded Overall Contact Length: 0.551" (14.00mm) Insulation Material: Polyamide (PA6T), Nylon 6T Row Spacing - Mating: 0.100" (2.54mm) Contact Length - Mating: 0.335" (8.51mm) |
на замовлення 2078 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
![]() |
M20-9971046 | Виробник : Harwin |
![]() |
на замовлення 981 шт: термін постачання 21-30 дні (днів) |
|
