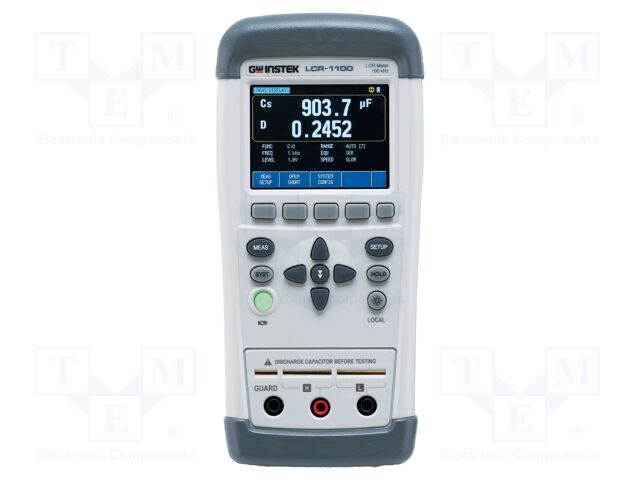

LCR-1100 GW INSTEK
Виробник: GW INSTEK
Category: LCR Meter
Description: LCR meter; touch screen,LCD TFT 2,8"; (50000); 50mΩ÷10MΩ
Type of meter: LCR meter
Kind of display used: LCD TFT 2,8"; touch screen
Display parameters: (50000)
Resistance measuring range: 50mΩ...10MΩ
Capacitance measuring range: 1pF...50mF
Measurement frequency: 50Hz; 100Hz; 120Hz; 1kHz; 2kHz; 10kHz; 50kHz; 100kHz
Measurement: capacitance; dissipation factor D; equivalent series resistance (ESR); inductance; phase angle θ; quality factor Q; resistance
Inductance measuring range: 500nH...1kH
Alias: 03ALCR11000S
Battery/ rechargeable battery: rechargeable battery 8,4V x1
Power supply: rechargeable battery 8,4V x1
Dimensions: 90x195x41mm
Measuring instrument features: AUTO LCR function; automatic power-off; autoranging; HOLD function; sorting mode; zeroing function
Standard equipment: cable LCR-101; cable LCR-108; cable LCR-205; soft case; USB C / USB A cable; user's manual
кількість в упаковці: 1 шт
Category: LCR Meter
Description: LCR meter; touch screen,LCD TFT 2,8"; (50000); 50mΩ÷10MΩ
Type of meter: LCR meter
Kind of display used: LCD TFT 2,8"; touch screen
Display parameters: (50000)
Resistance measuring range: 50mΩ...10MΩ
Capacitance measuring range: 1pF...50mF
Measurement frequency: 50Hz; 100Hz; 120Hz; 1kHz; 2kHz; 10kHz; 50kHz; 100kHz
Measurement: capacitance; dissipation factor D; equivalent series resistance (ESR); inductance; phase angle θ; quality factor Q; resistance
Inductance measuring range: 500nH...1kH
Alias: 03ALCR11000S
Battery/ rechargeable battery: rechargeable battery 8,4V x1
Power supply: rechargeable battery 8,4V x1
Dimensions: 90x195x41mm
Measuring instrument features: AUTO LCR function; automatic power-off; autoranging; HOLD function; sorting mode; zeroing function
Standard equipment: cable LCR-101; cable LCR-108; cable LCR-205; soft case; USB C / USB A cable; user's manual
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис LCR-1100 GW INSTEK
Category: LCR Meter, Description: LCR meter; touch screen,LCD TFT 2,8"; (50000); 50mΩ÷10MΩ, Type of meter: LCR meter, Kind of display used: LCD TFT 2,8"; touch screen, Display parameters: (50000), Resistance measuring range: 50mΩ...10MΩ, Capacitance measuring range: 1pF...50mF, Measurement frequency: 50Hz; 100Hz; 120Hz; 1kHz; 2kHz; 10kHz; 50kHz; 100kHz, Measurement: capacitance; dissipation factor D; equivalent series resistance (ESR); inductance; phase angle θ; quality factor Q; resistance, Inductance measuring range: 500nH...1kH, Alias: 03ALCR11000S, Battery/ rechargeable battery: rechargeable battery 8,4V x1, Power supply: rechargeable battery 8,4V x1, Dimensions: 90x195x41mm, Measuring instrument features: AUTO LCR function; automatic power-off; autoranging; HOLD function; sorting mode; zeroing function, Standard equipment: cable LCR-101; cable LCR-108; cable LCR-205; soft case; USB C / USB A cable; user's manual, кількість в упаковці: 1 шт.
