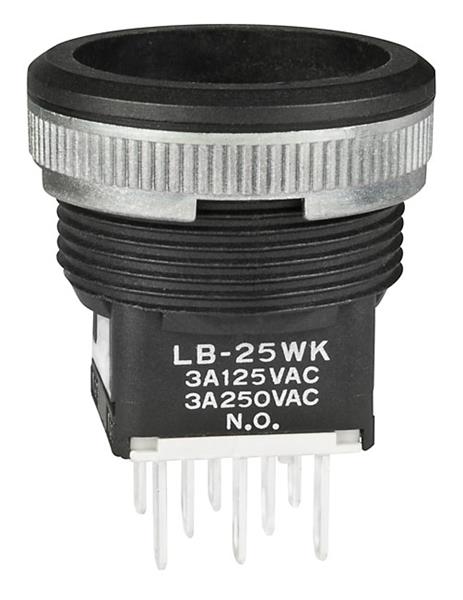

LB25WKW01 NKK Switches
Виробник: NKK SwitchesDescription: SWITCH PUSHBUTTON DPDT 3A 125V
Packaging: Bulk
Current Rating (Amps): 3A (AC/DC)
Mounting Type: Panel Mount, Front
Circuit: DPDT
Type: Standard
Switch Function: On-Mom
Operating Temperature: -25°C ~ 70°C
Termination Style: Solder, Quick Connect - 0.110" (2.8mm)
Actuator Type: Plunger for Cap
Ingress Protection: IP65 - Dust Tight, Water Resistant
Panel Cutout Dimensions: Circular - 22.00mm Dia
Actuator Marking: No Marking
Voltage Rating - AC: 125 V
Voltage Rating - DC: 30 V
на замовлення 35 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 1180.29 грн |
| 10+ | 1018.61 грн |
| 25+ | 973.83 грн |
Відгуки про товар
Написати відгук
Технічний опис LB25WKW01 NKK Switches
Category: Standard Switches, Description: Switch: push-button; Pos: 2; DPDT; 3A/250VAC; 3A/30VDC; ON-(ON), Mounting: on panel, Body dimensions: Ø25x24.3mm, Leads: connectors 2,8x0,5mm, Operating temperature: -25...70°C, Number of terminals: 3, Conform to the norm: CSA; UL, Manufacturer series: LB, IP rating: IP65, Operating Force: 5.39N, Illumination: none, Body colour: black, Key stroke: 3mm, Button shape: round, Number of positions: 2, Kind of material: fiber glass reinforced, Contact plating: silver plated, Mechanical durability: 1000000 cycles, Max. contact resistance:: 50mΩ, Min. insulation resistance: 200MΩ, Electrical life: 100000 cycles, Body material: polyamide, Poles number: 1, Contact material: phosphor bronze, Type of switch: push-button, Contacts configuration: DPDT, AC contacts rating @R: 3A / 250V AC, DC contacts rating @R: 3A / 30V DC, Switching method: ON-(ON), Stable positions number: 1, кількість в упаковці: 1 шт.
Інші пропозиції LB25WKW01 за ціною від 835.09 грн до 1264.64 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LB25WKW01 | Виробник : NKK Switches |
Pushbutton Switches SPDT ON(ON) BLACK BODY ONLY PANEL SEAL |
на замовлення 2 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||
 |
LB25WKW01 | Виробник : NKK Switches |
Switch Push Button ON (ON) DPDT Round Button 3A 250VAC 30VDC Momentary Contact Panel Mount Quick Connect/Solder Lug |
товар відсутній |
|||||||||||||||
| LB25WKW01 | Виробник : NKK SWITCHES |
Category: Standard Switches Description: Switch: push-button; Pos: 2; DPDT; 3A/250VAC; 3A/30VDC; ON-(ON) Mounting: on panel Body dimensions: Ø25x24.3mm Leads: connectors 2,8x0,5mm Operating temperature: -25...70°C Number of terminals: 3 Conform to the norm: CSA; UL Manufacturer series: LB IP rating: IP65 Operating Force: 5.39N Illumination: none Body colour: black Key stroke: 3mm Button shape: round Number of positions: 2 Kind of material: fiber glass reinforced Contact plating: silver plated Mechanical durability: 1000000 cycles Max. contact resistance:: 50mΩ Min. insulation resistance: 200MΩ Electrical life: 100000 cycles Body material: polyamide Poles number: 1 Contact material: phosphor bronze Type of switch: push-button Contacts configuration: DPDT AC contacts rating @R: 3A / 250V AC DC contacts rating @R: 3A / 30V DC Switching method: ON-(ON) Stable positions number: 1 кількість в упаковці: 1 шт |
товар відсутній |
||||||||||||||||
| LB25WKW01 | Виробник : NKK SWITCHES |
Category: Standard Switches Description: Switch: push-button; Pos: 2; DPDT; 3A/250VAC; 3A/30VDC; ON-(ON) Mounting: on panel Body dimensions: Ø25x24.3mm Leads: connectors 2,8x0,5mm Operating temperature: -25...70°C Number of terminals: 3 Conform to the norm: CSA; UL Manufacturer series: LB IP rating: IP65 Operating Force: 5.39N Illumination: none Body colour: black Key stroke: 3mm Button shape: round Number of positions: 2 Kind of material: fiber glass reinforced Contact plating: silver plated Mechanical durability: 1000000 cycles Max. contact resistance:: 50mΩ Min. insulation resistance: 200MΩ Electrical life: 100000 cycles Body material: polyamide Poles number: 1 Contact material: phosphor bronze Type of switch: push-button Contacts configuration: DPDT AC contacts rating @R: 3A / 250V AC DC contacts rating @R: 3A / 30V DC Switching method: ON-(ON) Stable positions number: 1 |
товар відсутній |
