HTSW-107-23-G-S Samtec
на замовлення 248 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 4+ | 92.74 грн |
| 50+ | 70.6 грн |
| 100+ | 49.54 грн |
| 500+ | 42.23 грн |
| 1000+ | 41.16 грн |
Відгуки про товар
Написати відгук

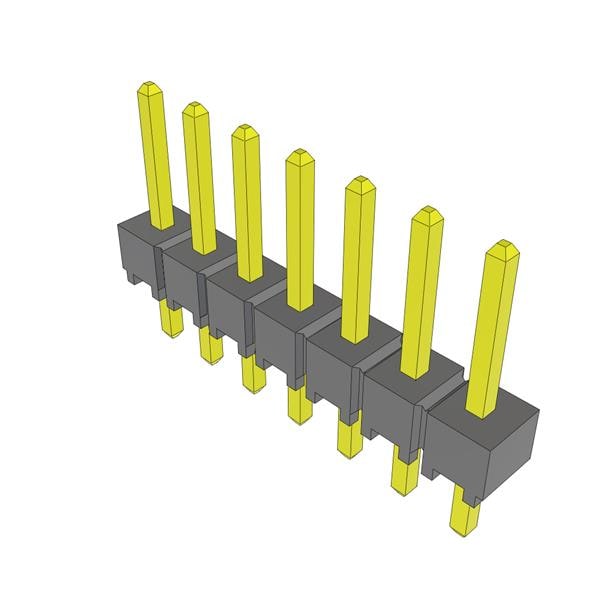

Технічний опис HTSW-107-23-G-S Samtec
Description: CONN HEADER VERT 7POS 2.54MM, Packaging: Bag, Connector Type: Header, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Number of Positions: 7, Number of Rows: 1, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Natural, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Gold, Contact Shape: Square, Contact Length - Post: 0.115" (2.92mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Overall Contact Length: 0.445" (11.30mm), Insulation Material: Liquid Crystal Polymer (LCP), Contact Length - Mating: 0.230" (5.84mm).
Інші пропозиції HTSW-107-23-G-S за ціною від 56.87 грн до 154.31 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HTSW-107-23-G-S | Виробник : Samtec Inc. |
 Description: CONN HEADER VERT 7POS 2.54MMPackaging: Bag Connector Type: Header Current Rating (Amps): Varies by Wire Gauge Mounting Type: Through Hole Number of Positions: 7 Number of Rows: 1 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Natural Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Gold Contact Shape: Square Contact Length - Post: 0.115" (2.92mm) Insulation Height: 0.100" (2.54mm) Shrouding: Unshrouded Overall Contact Length: 0.445" (11.30mm) Insulation Material: Liquid Crystal Polymer (LCP) Contact Length - Mating: 0.230" (5.84mm) |
на замовлення 876 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
|
|
HTSW-107-23-G-S | Виробник : Samtec Inc. |
Description: CONN HEADER VERT 7POS 2.54MM Packaging: Bag Connector Type: Header Current Rating (Amps): Varies by Wire Gauge Mounting Type: Through Hole Number of Positions: 7 Number of Rows: 1 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Natural Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Gold Contact Shape: Square Contact Length - Post: 0.115" (2.92mm) Insulation Height: 0.100" (2.54mm) Shrouding: Unshrouded Overall Contact Length: 0.445" (11.30mm) Insulation Material: Liquid Crystal Polymer (LCP) Contact Length - Mating: 0.230" (5.84mm) |
на замовлення 1454 шт: термін постачання 21-31 дні (днів) |
|
