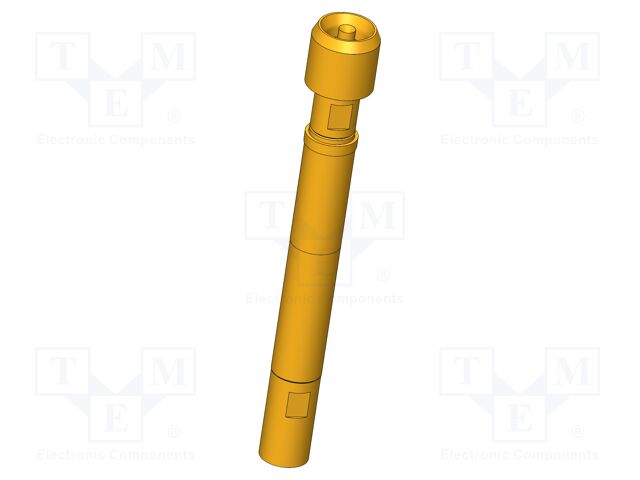

HFS-840 303 150 A 5342 RF3 INGUN
Виробник: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm
Type of test accessories: test needle
Operating temperature: -40...80°C
Manufacturer series: HFS-840
Spring compression force: 1.3N
Mounting: push-in
Contact plating: gold-plated
Max. frequency: 4GHz
Current rating: 3A
Impedance: 50Ω
Length: 43.2mm
Contact material: CuBe
Dielectric strength: 1.1kV
Blade tip shape: cone; inverted
Maksimum spring compression: 3.7mm
Operational spring compression: 2mm
Tip diameter: 1.5mm
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис HFS-840 303 150 A 5342 RF3 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm, Type of test accessories: test needle, Operating temperature: -40...80°C, Manufacturer series: HFS-840, Spring compression force: 1.3N, Mounting: push-in, Contact plating: gold-plated, Max. frequency: 4GHz, Current rating: 3A, Impedance: 50Ω, Length: 43.2mm, Contact material: CuBe, Dielectric strength: 1.1kV, Blade tip shape: cone; inverted, Maksimum spring compression: 3.7mm, Operational spring compression: 2mm, Tip diameter: 1.5mm, кількість в упаковці: 1 шт.
