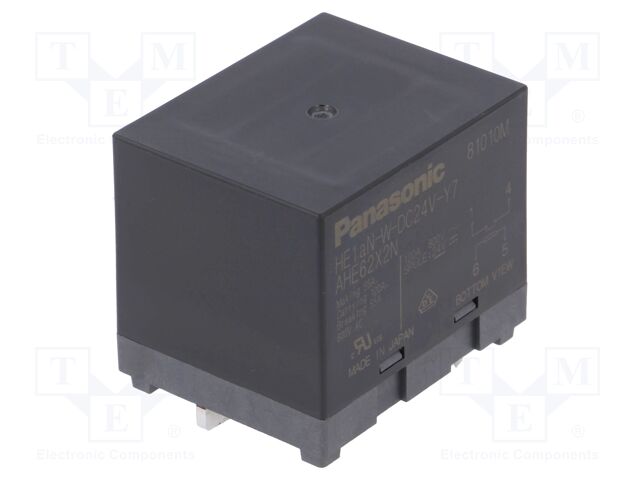

HE1AN-W-DC24V-Y7 PANASONIC
Виробник: PANASONICCategory: Power Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 120A
Mounting: PCB
Operating temperature: -40...55°C
Mechanical durability: 1000000 cycles
Switching capacity: 57.6kVA
Body dimensions: 50x40x43mm
Contacts configuration: SPST-NO
Coil voltage min.: 18V DC
Coil power consumption: 2.5W
Operate time: 30ms
Release time: 10ms
Switched voltage: max. 800V AC
Contact current max.: 120A
Coil current: 104mA
Relay variant: power
Contact material: AgNi
Coil resistance: 230Ω
AC contacts rating @R: 120A / 480V AC
Type of relay: electromagnetic
Relay series: HE
Rated coil voltage: 24V DC
на замовлення 2 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 2203.97 грн |
| 2+ | 1935.02 грн |
Відгуки про товар
Написати відгук
Технічний опис HE1AN-W-DC24V-Y7 PANASONIC
Category: Power Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 120A, Mounting: PCB, Operating temperature: -40...55°C, Mechanical durability: 1000000 cycles, Switching capacity: 57.6kVA, Body dimensions: 50x40x43mm, Contacts configuration: SPST-NO, Coil voltage min.: 18V DC, Coil power consumption: 2.5W, Operate time: 30ms, Release time: 10ms, Switched voltage: max. 800V AC, Contact current max.: 120A, Coil current: 104mA, Relay variant: power, Contact material: AgNi, Coil resistance: 230Ω, AC contacts rating @R: 120A / 480V AC, Type of relay: electromagnetic, Relay series: HE, Rated coil voltage: 24V DC, кількість в упаковці: 1 шт.
Інші пропозиції HE1AN-W-DC24V-Y7 за ціною від 1840.94 грн до 3141.34 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
HE1AN-W-DC24V-Y7 | Виробник : PANASONIC |
Category: Power Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 120A Mounting: PCB Operating temperature: -40...55°C Mechanical durability: 1000000 cycles Switching capacity: 57.6kVA Body dimensions: 50x40x43mm Contacts configuration: SPST-NO Coil voltage min.: 18V DC Coil power consumption: 2.5W Operate time: 30ms Release time: 10ms Switched voltage: max. 800V AC Contact current max.: 120A Coil current: 104mA Relay variant: power Contact material: AgNi Coil resistance: 230Ω AC contacts rating @R: 120A / 480V AC Type of relay: electromagnetic Relay series: HE Rated coil voltage: 24V DC кількість в упаковці: 1 шт |
на замовлення 2 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||||||
 |
HE1AN-W-DC24V-Y7 | Виробник : Panasonic Electric Works |
Description: RELAY GEN PURPOSE SPST 120A 24V Packaging: Tray Mounting Type: Through Hole Coil Voltage: 24VDC Operating Temperature: -40°C ~ 55°C Termination Style: PC Pin Approval Agency: cURus, VDE Relay Type: General Purpose Coil Current: 104 mA Coil Type: Non Latching Seal Rating: Sealed - Flux Protection Contact Material: Silver Nickel (AgNi) Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 120 A Switching Voltage: 800VAC, 60VDC - Max Must Release Voltage: 1.2 VDC Must Operate Voltage: 18 VDC Operate Time: 30 ms Release Time: 10 ms Coil Insulation: Class F Load - Max Switching: 96000VA, 7200W |
на замовлення 142 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
 |
HE1AN-W-DC24V-Y7 | Виробник : Panasonic Industrial Devices |
General Purpose Relays 24VDC 1 Form A 50x40x42mm TH |
на замовлення 3 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||||
 |
HE1AN-W-DC24V-Y7 | Виробник : Panasonic Electric Works |
Power Relay 24VDC 120A SPST-NO(50mm 40mm 43mm) THT |
товар відсутній |
