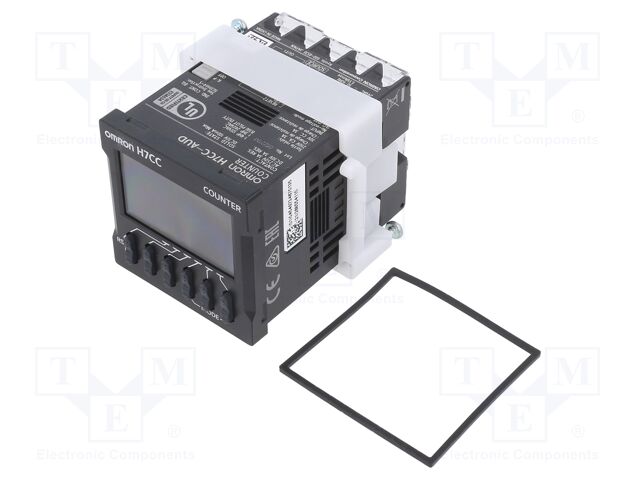

H7CC-AUD OMRON
![H7CC-EN.pdf](/images/adobe-acrobat.png)
Category: Impulse Counters
Description: Counter: electronical; LCD; pulses; -99999÷999999; SPDT; 12÷48VDC
Kind of output 1: SPDT
Operating temperature: -10...55°C
Kind of input 1: contact; NPN; PNP
Output 1 electrical parameters: 240V AC / 3A
Electrical input 1 parameters: high level: 4,5...30V; low level: 0...2V
Mounting: on panel
Kind of display used: LCD
Supply voltage: 12...48V DC; 24V AC
Kind of input 2: contact; NPN; PNP
Kind of output 2: NPN
Electrical connection: screw terminals
Type of counted signal: pulses
Type of counter: electronical
Max IN1 counting frequency: 10kHz
IN2 max counting frequency: 10kHz
Resetting method: electrical; manual
Display height 1: 10mm
Display 2 height: 6mm
Electrical input 2 parameters: high level: 4,5...30V; low level: 0...2V
Mounting hole diameter: 45x45mm
Counting range: -99999...999999
Kind of counter: progressive/reversing; with preset value; with tachometer function
Output 2 electrical parameters: 30V DC / 100mA
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис H7CC-AUD OMRON
Category: Impulse Counters, Description: Counter: electronical; LCD; pulses; -99999÷999999; SPDT; 12÷48VDC, Kind of output 1: SPDT, Operating temperature: -10...55°C, Kind of input 1: contact; NPN; PNP, Output 1 electrical parameters: 240V AC / 3A, Electrical input 1 parameters: high level: 4,5...30V; low level: 0...2V, Mounting: on panel, Kind of display used: LCD, Supply voltage: 12...48V DC; 24V AC, Kind of input 2: contact; NPN; PNP, Kind of output 2: NPN, Electrical connection: screw terminals, Type of counted signal: pulses, Type of counter: electronical, Max IN1 counting frequency: 10kHz, IN2 max counting frequency: 10kHz, Resetting method: electrical; manual, Display height 1: 10mm, Display 2 height: 6mm, Electrical input 2 parameters: high level: 4,5...30V; low level: 0...2V, Mounting hole diameter: 45x45mm, Counting range: -99999...999999, Kind of counter: progressive/reversing; with preset value; with tachometer function, Output 2 electrical parameters: 30V DC / 100mA, кількість в упаковці: 1 шт.
Інші пропозиції H7CC-AUD
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
---|---|---|---|---|---|
![]() |
H7CC-AUD | Виробник : Omron Automation and Safety |
![]() Packaging: Box Display Type: LCD - Dual Color Characters, Backlight Output Type: Relay Mounting Type: Panel Mount Type: Batch, Preset, Tachometer, Totalizer Reset: External, Front Panel, Programmable Termination Style: Screw Terminal Voltage - Supply: 24VAC, 12 ~ 48VDC Input Type: No Voltage, Voltage Operating Mode: Up, Down, Command, Individual, Quadrature Count Rate: 30Hz, 10kHz Ingress Protection: IP66 - Dust Tight, Water Resistant Panel Cutout Dimensions: Square - 45.00mm x 45.00mm Display Characters - Height: 0.394" (10.00mm), 0.236" (6.00mm) Number of Characters Per Row: 6, 6 |
товар відсутній |
|
![]() |
H7CC-AUD | Виробник : Omron Automation and Safety |
![]() |
товар відсутній |
|
![]() |
H7CC-AUD | Виробник : OMRON |
![]() Description: Counter: electronical; LCD; pulses; -99999÷999999; SPDT; 12÷48VDC Kind of output 1: SPDT Operating temperature: -10...55°C Kind of input 1: contact; NPN; PNP Output 1 electrical parameters: 240V AC / 3A Electrical input 1 parameters: high level: 4,5...30V; low level: 0...2V Mounting: on panel Kind of display used: LCD Supply voltage: 12...48V DC; 24V AC Kind of input 2: contact; NPN; PNP Kind of output 2: NPN Electrical connection: screw terminals Type of counted signal: pulses Type of counter: electronical Max IN1 counting frequency: 10kHz IN2 max counting frequency: 10kHz Resetting method: electrical; manual Display height 1: 10mm Display 2 height: 6mm Electrical input 2 parameters: high level: 4,5...30V; low level: 0...2V Mounting hole diameter: 45x45mm Counting range: -99999...999999 Kind of counter: progressive/reversing; with preset value; with tachometer function Output 2 electrical parameters: 30V DC / 100mA |
