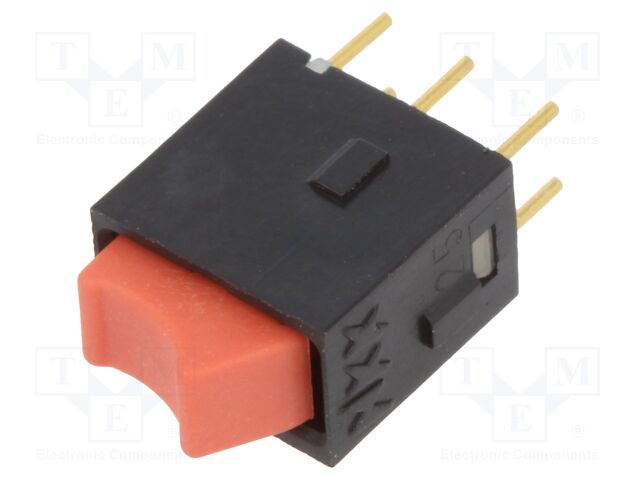

GW12RCP NKK SWITCHES
Виробник: NKK SWITCHES
Category: Rocker Switches
Description: ROCKER; SPDT; Pos: 2; ON-ON; 0.1A/28VAC; 0.1A/28VDC; red; none; THT
Body material: polyamide
Manufacturer series: GW
Poles number: 1
Operating temperature: -30...85°C
Kind of material: fiber glass reinforced
Max. contact resistance:: 80mΩ
Electrical life: 50000 cycles
Illumination: none
Number of positions: 2
Contact plating: gold-plated
Terminal pitch: 2.54mm
Mounting: THT
Contact material: phosphor bronze
Button shape: rectangular
Type of switch: ROCKER
Mechanical durability: 50000 cycles
DC contacts rating @R: 0.1A / 28V DC
Body colour: black
AC contacts rating @R: 0.1A / 28V AC
Key button colour: red
Contacts configuration: SPDT
Stable positions number: 2
Number of terminals: 5
Leads: for soldering; straight
Operating Force: 1.7N
Body dimensions: 4.5x7x7mm
Switching method: ON-ON
Min. insulation resistance: 500MΩ
Category: Rocker Switches
Description: ROCKER; SPDT; Pos: 2; ON-ON; 0.1A/28VAC; 0.1A/28VDC; red; none; THT
Body material: polyamide
Manufacturer series: GW
Poles number: 1
Operating temperature: -30...85°C
Kind of material: fiber glass reinforced
Max. contact resistance:: 80mΩ
Electrical life: 50000 cycles
Illumination: none
Number of positions: 2
Contact plating: gold-plated
Terminal pitch: 2.54mm
Mounting: THT
Contact material: phosphor bronze
Button shape: rectangular
Type of switch: ROCKER
Mechanical durability: 50000 cycles
DC contacts rating @R: 0.1A / 28V DC
Body colour: black
AC contacts rating @R: 0.1A / 28V AC
Key button colour: red
Contacts configuration: SPDT
Stable positions number: 2
Number of terminals: 5
Leads: for soldering; straight
Operating Force: 1.7N
Body dimensions: 4.5x7x7mm
Switching method: ON-ON
Min. insulation resistance: 500MΩ
на замовлення 94 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
3+ | 168 грн |
7+ | 121.6 грн |
20+ | 114.96 грн |
Відгуки про товар
Написати відгук
Технічний опис GW12RCP NKK SWITCHES
Category: Rocker Switches, Description: ROCKER; SPDT; Pos: 2; ON-ON; 0.1A/28VAC; 0.1A/28VDC; red; none; THT, Body material: polyamide, Manufacturer series: GW, Poles number: 1, Operating temperature: -30...85°C, Kind of material: fiber glass reinforced, Max. contact resistance:: 80mΩ, Electrical life: 50000 cycles, Illumination: none, Number of positions: 2, Contact plating: gold-plated, Terminal pitch: 2.54mm, Mounting: THT, Contact material: phosphor bronze, Button shape: rectangular, Type of switch: ROCKER, Mechanical durability: 50000 cycles, DC contacts rating @R: 0.1A / 28V DC, Body colour: black, AC contacts rating @R: 0.1A / 28V AC, Key button colour: red, Contacts configuration: SPDT, Stable positions number: 2, Number of terminals: 5, Leads: for soldering; straight, Operating Force: 1.7N, Body dimensions: 4.5x7x7mm, Switching method: ON-ON, Min. insulation resistance: 500MΩ, кількість в упаковці: 1 шт.
Інші пропозиції GW12RCP за ціною від 137.96 грн до 312 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
+1 |
GW12RCP | Виробник : NKK SWITCHES |
Category: Rocker Switches Description: ROCKER; SPDT; Pos: 2; ON-ON; 0.1A/28VAC; 0.1A/28VDC; red; none; THT Body material: polyamide Manufacturer series: GW Poles number: 1 Operating temperature: -30...85°C Kind of material: fiber glass reinforced Max. contact resistance:: 80mΩ Electrical life: 50000 cycles Illumination: none Number of positions: 2 Contact plating: gold-plated Terminal pitch: 2.54mm Mounting: THT Contact material: phosphor bronze Button shape: rectangular Type of switch: ROCKER Mechanical durability: 50000 cycles DC contacts rating @R: 0.1A / 28V DC Body colour: black AC contacts rating @R: 0.1A / 28V AC Key button colour: red Contacts configuration: SPDT Stable positions number: 2 Number of terminals: 5 Leads: for soldering; straight Operating Force: 1.7N Body dimensions: 4.5x7x7mm Switching method: ON-ON Min. insulation resistance: 500MΩ кількість в упаковці: 1 шт |
на замовлення 94 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||||||||
GW12RCP | Виробник : NKK Switches | Switch Rocker ON None ON SPDT PC Pins Curved Rocker 0.1A 28VAC 28VDC 0.4VA 50000Cycles |
на замовлення 50 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||||
GW12RCP | Виробник : NKK Switches | Switch Rocker ON None ON SPDT PC Pins Curved Rocker 0.1A 28VAC 28VDC 0.4VA 50000Cycles |
на замовлення 50 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||||
GW12RCP | Виробник : NKK Switches |
Description: SWITCH ROCKER SPDT 0.4VA 28V Packaging: Tray Features: Sealed - Flux Protection Current Rating (Amps): 0.4VA (AC/DC) Mounting Type: Through Hole Circuit: SPDT Switch Function: On-On Operating Temperature: -30°C ~ 85°C Termination Style: PC Pin Actuator Type: Concave (Curved) Color - Actuator/Cap: Red Actuator Marking: No Marking Voltage Rating - AC: 28 V Voltage Rating - DC: 28 V Approval Agency: CSA, UL |
на замовлення 5442 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||||
GW12RCP | Виробник : NKK Switches | Rocker Switches SPDT ON-ON RED ROCKER ACTUATOR |
на замовлення 95 шт: термін постачання 21-30 дні (днів) |
|
|||||||||||||||||||
GW12RCP | Виробник : NKK Switches | Рокерний перемикач; Iк, А = 0,4 ВА; Uк, В = 28 (DC, AC); Алг.раб.гр = ON-ON; Конф. конт. = SPDT; Сп. монт. = на плату; Тексп, °C = -30...+85; Колір актуатора = червоний; DIP |
на замовлення 2 шт: термін постачання 2-3 дні (днів) |
|
|||||||||||||||||||
GW12RCP | Виробник : NKK Switches | Switch Rocker ON None ON SPDT PC Pins Curved Rocker 0.1A 28VAC 28VDC 0.4VA 50000Cycles |
товар відсутній |
||||||||||||||||||||
GW12RCP | Виробник : NKK Switches | Switch Rocker ON None ON SPDT PC Pins Curved Rocker 0.1A 28VAC 28VDC 0.4VA 50000Cycles |
товар відсутній |
