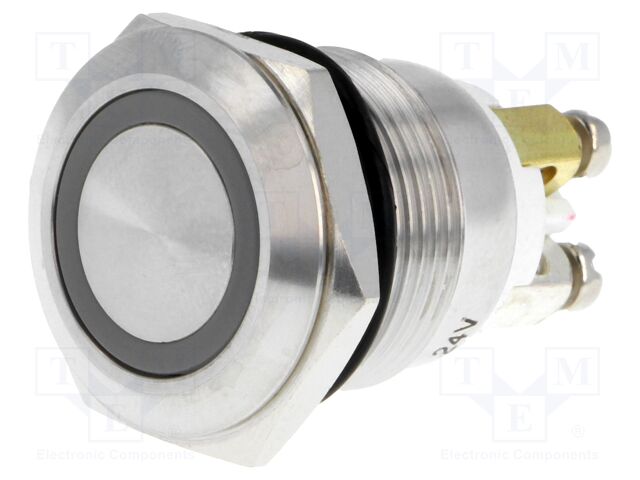

GQ19F-10E/GB/24/S (DUAL LED, 24V) ONPOW
Виробник: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON)
Type of switch: vandal resistant
Number of positions: 2
Contacts configuration: SPST-NO
DC contacts rating @R: 2A / 36V DC
IP rating: IP65
Switching method: OFF-(ON)
Illumination: LED; ring
Backlight colour: green/blue
Illumination voltage: 24V
Leads: screw terminals
Operating temperature: -20...55°C
Electrical life: 200000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 4N
Mechanical durability: 1000000 cycles
Button shape: flat
Mounting hole diameter: Ø19mm
Body colour: silver
Body material: stainless steel
Ring shape: rounded
Test voltage: 1.5kV
Contact material: silver alloy
Switches features: colour change by changing polarization
Stable positions number: 1
Related items: M12-19F
кількість в упаковці: 1 шт
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON)
Type of switch: vandal resistant
Number of positions: 2
Contacts configuration: SPST-NO
DC contacts rating @R: 2A / 36V DC
IP rating: IP65
Switching method: OFF-(ON)
Illumination: LED; ring
Backlight colour: green/blue
Illumination voltage: 24V
Leads: screw terminals
Operating temperature: -20...55°C
Electrical life: 200000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 4N
Mechanical durability: 1000000 cycles
Button shape: flat
Mounting hole diameter: Ø19mm
Body colour: silver
Body material: stainless steel
Ring shape: rounded
Test voltage: 1.5kV
Contact material: silver alloy
Switches features: colour change by changing polarization
Stable positions number: 1
Related items: M12-19F
кількість в упаковці: 1 шт
