GKS-101 224 115 A 1500 INGUN
Виробник: INGUN
Category: Contact Probes

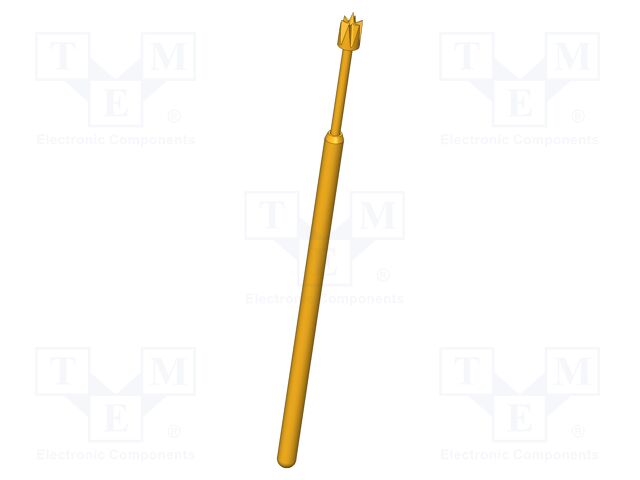

Description: Test needle; Operational spring compression: 4mm; 3A; Ø: 1.15mm
Mounting: push-in
Manufacturer series: GKS-101
Operating temperature: -40...80°C
Contact material: steel
Blade tip shape: 6-piont; corona; with middle point
Type of test accessories: test needle
Maksimum spring compression: 5.3mm
Operational spring compression: 4mm
Tip diameter: 1.15mm
Test accessories features: magnetic; self-cleaning
Spring compression force: 0.5N
Contact plating: gold-plated
Max. contact resistance:: 20mΩ
Current rating: 3A
Length: 27.3mm
кількість в упаковці: 1 шт
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 3A; Ø: 1.15mm
Mounting: push-in
Manufacturer series: GKS-101
Operating temperature: -40...80°C
Contact material: steel
Blade tip shape: 6-piont; corona; with middle point
Type of test accessories: test needle
Maksimum spring compression: 5.3mm
Operational spring compression: 4mm
Tip diameter: 1.15mm
Test accessories features: magnetic; self-cleaning
Spring compression force: 0.5N
Contact plating: gold-plated
Max. contact resistance:: 20mΩ
Current rating: 3A
Length: 27.3mm
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис GKS-101 224 115 A 1500 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 3A; Ø: 1.15mm, Mounting: push-in, Manufacturer series: GKS-101, Operating temperature: -40...80°C, Contact material: steel, Blade tip shape: 6-piont; corona; with middle point, Type of test accessories: test needle, Maksimum spring compression: 5.3mm, Operational spring compression: 4mm, Tip diameter: 1.15mm, Test accessories features: magnetic; self-cleaning, Spring compression force: 0.5N, Contact plating: gold-plated, Max. contact resistance:: 20mΩ, Current rating: 3A, Length: 27.3mm, кількість в упаковці: 1 шт.
