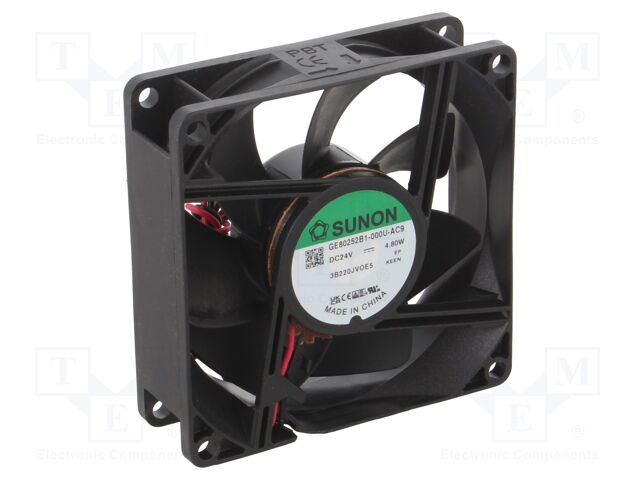

GE80252B1-000U-AC9 SUNON
Виробник: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x25mm; 101.9m3/h; 47.5dBA; ball; IP56
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Fan dimensions: 80x80x25mm
Power consumption: 4.8W
Current rating: 0.2A
Fan efficiency: 101.9m3/h
Noise level: 47.5dBA
Kind of Bearing: ball
Rotational rate/speed: 4800 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
IP rating: IP56
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.32m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 10.414mm H2O
Wire size: 24AWG
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x25mm; 101.9m3/h; 47.5dBA; ball; IP56
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Fan dimensions: 80x80x25mm
Power consumption: 4.8W
Current rating: 0.2A
Fan efficiency: 101.9m3/h
Noise level: 47.5dBA
Kind of Bearing: ball
Rotational rate/speed: 4800 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
IP rating: IP56
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.32m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 10.414mm H2O
Wire size: 24AWG
на замовлення 1098 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 1171.94 грн |
10+ | 1053.48 грн |
50+ | 983.25 грн |
100+ | 948.5 грн |
200+ | 913.02 грн |
Відгуки про товар
Написати відгук
Технічний опис GE80252B1-000U-AC9 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 80x80x25mm; 101.9m3/h; 47.5dBA; ball; IP56, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Operating voltage: 10...27.6V DC, Fan dimensions: 80x80x25mm, Power consumption: 4.8W, Current rating: 0.2A, Fan efficiency: 101.9m3/h, Noise level: 47.5dBA, Kind of Bearing: ball, Rotational rate/speed: 4800 (±10%)rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, IP rating: IP56, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 0.32m, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 10.414mm H2O, Wire size: 24AWG, кількість в упаковці: 1 шт.
Інші пропозиції GE80252B1-000U-AC9 за ціною від 1095.62 грн до 3429.86 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GE80252B1-000U-AC9 | Виробник : SUNON |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 80x80x25mm; 101.9m3/h; 47.5dBA; ball; IP56 Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Operating voltage: 10...27.6V DC Fan dimensions: 80x80x25mm Power consumption: 4.8W Current rating: 0.2A Fan efficiency: 101.9m3/h Noise level: 47.5dBA Kind of Bearing: ball Rotational rate/speed: 4800 (±10%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A IP rating: IP56 Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.32m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 10.414mm H2O Wire size: 24AWG кількість в упаковці: 1 шт |
на замовлення 1098 шт: термін постачання 14-21 дні (днів) |
|
|||||||||||||||
GE80252B1-000U-AC9 | Виробник : Sunon Fans |
Description: FAN AXIAL 80X25MM 24VDC WIRE Packaging: Bulk Voltage - Rated: 24VDC Size / Dimension: Square - 80mm L x 80mm H Bearing Type: Ball RPM: 4800 RPM Air Flow: 60.0 CFM (1.68m³/min) Width: 25.00mm Weight: 0.231 lb (104.78 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, CUR, TUV, UL Ingress Protection: IP56 - Dust Protected, Water Resistant Fan Type: Tubeaxial Noise: 47.5dB(A) Static Pressure: 0.410 in H2O (102.1 Pa) Part Status: Active Power (Watts): 4.8 W |
на замовлення 408 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||
GE80252B1-000U-AC9 | Виробник : Sunon | DC Fans Axial Fan, 80x80x25mm, 24VDC, 60CFM, 0.41"H2O, Ball, Wire, Auto Restart, IP56 |
на замовлення 100 шт: термін постачання 21-30 дні (днів) |
|
|||||||||||||||
GE80252B1-000U-AC9 | Виробник : Sunon | Dustproof and Waterproof Fan Series |
на замовлення 43 шт: термін постачання 21-31 дні (днів) |
|
