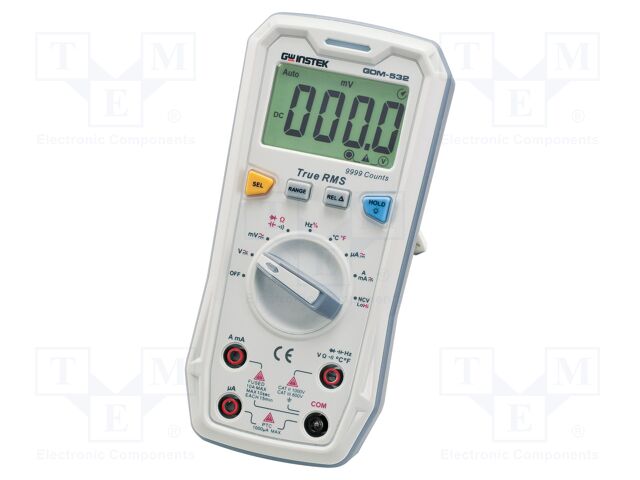

GDM-532 GW INSTEK
Виробник: GW INSTEK
Category: Portable digital multimeters
Description: Digital multimeter; LCD; (9999); I DC: 999.9uA,999.9mA,9.999A
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: (9999)
DC voltage measuring range: 9.999mV; 99.99mV; 999.9mV; 9999mV; 99.99V; 999.9V
DC voltage measuring accuracy: ±(0,5% + 3 digits)
AC voltage measuring range: 9.999mV; 99.99mV; 999.9mV; 9999mV; 99.99V; 999.9V
AC voltage measuring accuracy: ±(0,8% + 3 digits)
DC current measuring range: 999.9µA; 999.9mA; 9.999A
AC current measuring range: 600µA; 6000µA; 60mA; 600mA; 6A; 10A
DC current measuring accuracy: ±(0,8% + 3 digits)
AC current measuring accuracy: ±(1% + 3 digits)
True effective value measurement: True RMS
Resistance measuring range: 600...99.99MΩ
Resistance measuring accuracy: ±(0,8% + 2 digits)
Capacitance measuring range: 9.999nF; 99.99nF; 999.9nF; 9.999µF; 99.99µF; 999.9µF; 9.999mF
Capacitance measuring accuracy: ±(4% + 5 digits)
Frequency measuring range: 99.99...9.999MHz
Frequency measuring accuracy: ±(0,1% + 5 digits)
Temperature measurement accuracy: ±(1% + 5°C)
Temperature measuring range (with K-type thermocouple): -40...1000°C
Test: diodes
Continuity test: acoustic indication
Power supply: battery R03 AAA 1,5V x3
Standard equipment: K-type thermocouple; test leads
Conform to the norm: CAT II 1000V; CAT III 600V; EN 61010
Dimensions (W x H x D): 81x169x46mm
Producer guarantee (months): 24
Measuring instrument features: automatic power-off; contactless voltage detector; HOLD function
Alias: 03UNDM532000
Category: Portable digital multimeters
Description: Digital multimeter; LCD; (9999); I DC: 999.9uA,999.9mA,9.999A
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: (9999)
DC voltage measuring range: 9.999mV; 99.99mV; 999.9mV; 9999mV; 99.99V; 999.9V
DC voltage measuring accuracy: ±(0,5% + 3 digits)
AC voltage measuring range: 9.999mV; 99.99mV; 999.9mV; 9999mV; 99.99V; 999.9V
AC voltage measuring accuracy: ±(0,8% + 3 digits)
DC current measuring range: 999.9µA; 999.9mA; 9.999A
AC current measuring range: 600µA; 6000µA; 60mA; 600mA; 6A; 10A
DC current measuring accuracy: ±(0,8% + 3 digits)
AC current measuring accuracy: ±(1% + 3 digits)
True effective value measurement: True RMS
Resistance measuring range: 600...99.99MΩ
Resistance measuring accuracy: ±(0,8% + 2 digits)
Capacitance measuring range: 9.999nF; 99.99nF; 999.9nF; 9.999µF; 99.99µF; 999.9µF; 9.999mF
Capacitance measuring accuracy: ±(4% + 5 digits)
Frequency measuring range: 99.99...9.999MHz
Frequency measuring accuracy: ±(0,1% + 5 digits)
Temperature measurement accuracy: ±(1% + 5°C)
Temperature measuring range (with K-type thermocouple): -40...1000°C
Test: diodes
Continuity test: acoustic indication
Power supply: battery R03 AAA 1,5V x3
Standard equipment: K-type thermocouple; test leads
Conform to the norm: CAT II 1000V; CAT III 600V; EN 61010
Dimensions (W x H x D): 81x169x46mm
Producer guarantee (months): 24
Measuring instrument features: automatic power-off; contactless voltage detector; HOLD function
Alias: 03UNDM532000
на замовлення 7 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 4407.5 грн |
