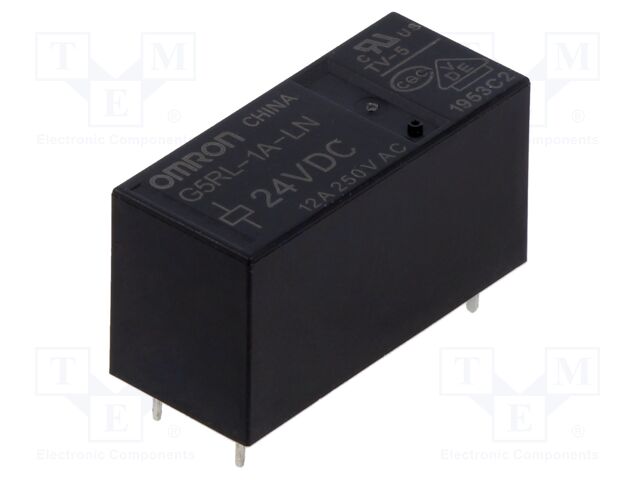

G5RL-1A-LN DC24 OMRON Electronic Components
Виробник: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 12A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 12A
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 12A / 24V DC
Switched voltage: max. 24V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1086Ω
Operate time: 15ms
Body dimensions: 29x12.5x15.7mm
Release time: 15ms
Mechanical durability: 1000000 cycles
Operating temperature: -40...85°C
Relay series: G5RL
Contact resistance: 100mΩ
Contact material: silver alloy
Coil current: 22.1mA
Leads: for soldering
Enclosure description: standard seal
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 12A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 12A
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 12A / 24V DC
Switched voltage: max. 24V DC; max. 250V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1086Ω
Operate time: 15ms
Body dimensions: 29x12.5x15.7mm
Release time: 15ms
Mechanical durability: 1000000 cycles
Operating temperature: -40...85°C
Relay series: G5RL
Contact resistance: 100mΩ
Contact material: silver alloy
Coil current: 22.1mA
Leads: for soldering
Enclosure description: standard seal
на замовлення 93 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
2+ | 216.03 грн |
7+ | 130.79 грн |
18+ | 124.18 грн |
Відгуки про товар
Написати відгук
Технічний опис G5RL-1A-LN DC24 OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 12A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 24V DC, Contact current max.: 12A, AC contacts rating @R: 12A / 250V AC, DC contacts rating @R: 12A / 24V DC, Switched voltage: max. 24V DC; max. 250V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 1086Ω, Operate time: 15ms, Body dimensions: 29x12.5x15.7mm, Release time: 15ms, Mechanical durability: 1000000 cycles, Operating temperature: -40...85°C, Relay series: G5RL, Contact resistance: 100mΩ, Contact material: silver alloy, Coil current: 22.1mA, Leads: for soldering, Enclosure description: standard seal, кількість в упаковці: 1 шт.
Інші пропозиції G5RL-1A-LN DC24 за ціною від 149.01 грн до 698.73 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
G5RL-1A-LN DC24 | Виробник : Omron Electronics Inc-EMC Div |
Description: RELAY GEN PURPOSE SPST 12A 24V Packaging: Tube Mounting Type: Through Hole Coil Voltage: 24VDC Operating Temperature: -40°C ~ 85°C Termination Style: PC Pin Approval Agency: CQC, CSA, cURus, UR, VDE Relay Type: General Purpose Coil Current: 22.1 mA Coil Type: Non Latching Seal Rating: Sealed - Flux Protection Contact Material: Silver Alloy Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 12 A Switching Voltage: 250VAC, 24VDC - Max Must Release Voltage: 2.4 VDC Must Operate Voltage: 16.8 VDC Operate Time: 15 ms Release Time: 15 ms Part Status: Active Load - Max Switching: 3000VA, 288W |
на замовлення 284 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||
G5RL-1A-LN DC24 | Виробник : OMRON Electronic Components |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 12A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 24V DC Contact current max.: 12A AC contacts rating @R: 12A / 250V AC DC contacts rating @R: 12A / 24V DC Switched voltage: max. 24V DC; max. 250V AC Relay variant: miniature Mounting: PCB Coil resistance: 1086Ω Operate time: 15ms Body dimensions: 29x12.5x15.7mm Release time: 15ms Mechanical durability: 1000000 cycles Operating temperature: -40...85°C Relay series: G5RL Contact resistance: 100mΩ Contact material: silver alloy Coil current: 22.1mA Leads: for soldering Enclosure description: standard seal кількість в упаковці: 1 шт |
на замовлення 93 шт: термін постачання 14-21 дні (днів) |
|
|||||||||||||||||
G5RL-1A-LN-DC24 | Виробник : Omron Electronics | General Purpose Relays LowNoise/Profile 12A SPST-NO 24VDC |
на замовлення 130 шт: термін постачання 21-30 дні (днів) |
|
|||||||||||||||||
G5RL-1A-LN DC24 | Виробник : Omron | Power Relay 24VDC 12A SPST-NO(29x12.7x15.7)mm THT |
на замовлення 235 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||
G5RL-1A-LN DC24 | Виробник : Omron | Power Relay 24VDC 12A SPST-NO(29x12.7x15.7)mm THT |
товар відсутній |
||||||||||||||||||
G5RL1ALNDC24 | Виробник : Omron Electronics Inc-EMC Div | Description: PWR RELAYS PWR PCB RELAY |
товар відсутній |
