![G12JPCF G12JPCF](https://mm.digikey.com/Volume0/opasdata/d220001/medias/images/2359/G12JPCF, G13JPCF.jpg)

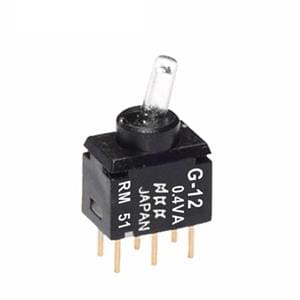

G12JPCF NKK Switches
![gtogglesilluminated.pdf](/images/adobe-acrobat.png)
Description: SWITCH TOGGLE SPDT 0.4VA 28V
Packaging: Bulk
Features: Process Sealed
Current Rating (Amps): 0.4VA (AC/DC)
Mounting Type: Through Hole
Circuit: SPDT
Switch Function: On-On
Operating Temperature: -25°C ~ 85°C
Termination Style: PC Pin
Illumination Type, Color: LED, Green/Red
Illumination Voltage (Nominal): 2.0, 2.1 VDC
Illumination: Illuminated
Bushing Thread: Unthreaded
Actuator Length: 3.80mm
Actuator Type: Standard Round
Part Status: Active
Voltage Rating - AC: 28 V
Voltage Rating - DC: 28 V
на замовлення 1568 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 580.89 грн |
10+ | 502.62 грн |
25+ | 479.41 грн |
50+ | 430.56 грн |
100+ | 413.63 грн |
250+ | 391.86 грн |
500+ | 356.88 грн |
1000+ | 340.23 грн |
Відгуки про товар
Написати відгук
Технічний опис G12JPCF NKK Switches
Category: Toggle Switches, Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 0.1A/28VAC; 0.1A/28VDC; THT, Type of switch: toggle, Number of positions: 2, Contacts configuration: SPDT, AC contacts rating @R: 0.1A / 28V AC, DC contacts rating @R: 0.1A / 28V DC, Switching method: ON-ON, Illumination: LED, Backlight colour: red/green, Leads: for soldering; straight, Operating temperature: -25...55°C, Electrical life: 100000 cycles, Max. contact resistance:: 80mΩ, Operating Force: 1.3N, Mechanical durability: 100000 cycles, Body material: polyamide, Contact material: phosphor bronze, Contact plating: gold-plated, Min. insulation resistance: 500MΩ, Terminal pitch: 2.54mm, Mounting: THT, Body dimensions: 4.5x7x7mm, Number of terminals: 6, Manufacturer series: G, Stable positions number: 2, Poles number: 1, Kind of material: fiber glass reinforced, Actuator material: polyamide, Lever length: 3.8mm, Kind of toggle: round.
Інші пропозиції G12JPCF за ціною від 381.94 грн до 716.8 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
G12JPCF | Виробник : NKK Switches |
![]() |
на замовлення 278 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||
![]() |
G12JPCF | Виробник : NKK SWITCHES |
![]() tariffCode: 85365019 rohsCompliant: YES Schalteranschlüsse: Lötanschluss hazardous: false rohsPhthalatesCompliant: YES Kontaktstrom, max.: 100mA Schalterfunktion: Ein-Aus usEccn: EAR99 AC-Kontaktspannung, nom.: 28V euEccn: NLR DC-Kontaktspannung, nom.: 28V Beleuchtung: Beleuchtet Schaltermontage: Panelmontage Produktpalette: G productTraceability: No Kontaktkonfiguration: SPDT SVHC: No SVHC (16-Jan-2020) |
на замовлення 80 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
![]() |
G12JPCF | Виробник : NKK Switches |
![]() |
на замовлення 1 шт: термін постачання 21-31 дні (днів) |
|||||||||||||
![]() |
G12JPCF | Виробник : NKK Switches |
![]() |
товар відсутній |
|||||||||||||
![]() |
G12JPCF | Виробник : NKK Switches |
![]() |
товар відсутній |
|||||||||||||
G12JPCF | Виробник : NKK SWITCHES |
![]() Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 0.1A/28VAC; 0.1A/28VDC; THT Type of switch: toggle Number of positions: 2 Contacts configuration: SPDT AC contacts rating @R: 0.1A / 28V AC DC contacts rating @R: 0.1A / 28V DC Switching method: ON-ON Illumination: LED Backlight colour: red/green Leads: for soldering; straight Operating temperature: -25...55°C Electrical life: 100000 cycles Max. contact resistance:: 80mΩ Operating Force: 1.3N Mechanical durability: 100000 cycles Body material: polyamide Contact material: phosphor bronze Contact plating: gold-plated Min. insulation resistance: 500MΩ Terminal pitch: 2.54mm Mounting: THT Body dimensions: 4.5x7x7mm Number of terminals: 6 Manufacturer series: G Stable positions number: 2 Poles number: 1 Kind of material: fiber glass reinforced Actuator material: polyamide Lever length: 3.8mm Kind of toggle: round |
товар відсутній |
||||||||||||||
G12JPCF | Виробник : NKK SWITCHES |
![]() Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 0.1A/28VAC; 0.1A/28VDC; THT Type of switch: toggle Number of positions: 2 Contacts configuration: SPDT AC contacts rating @R: 0.1A / 28V AC DC contacts rating @R: 0.1A / 28V DC Switching method: ON-ON Illumination: LED Backlight colour: red/green Leads: for soldering; straight Operating temperature: -25...55°C Electrical life: 100000 cycles Max. contact resistance:: 80mΩ Operating Force: 1.3N Mechanical durability: 100000 cycles Body material: polyamide Contact material: phosphor bronze Contact plating: gold-plated Min. insulation resistance: 500MΩ Terminal pitch: 2.54mm Mounting: THT Body dimensions: 4.5x7x7mm Number of terminals: 6 Manufacturer series: G Stable positions number: 2 Poles number: 1 Kind of material: fiber glass reinforced Actuator material: polyamide Lever length: 3.8mm Kind of toggle: round |
товар відсутній |
