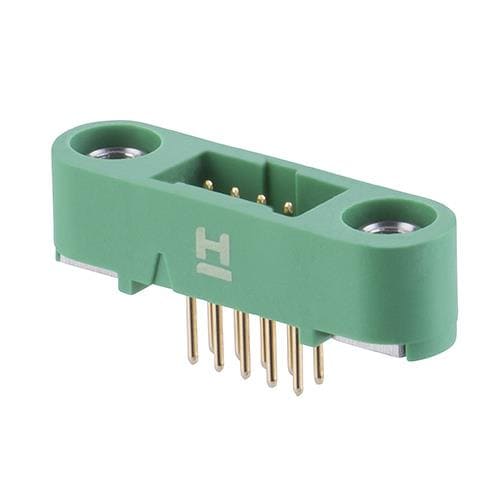

G125-MV11005M1P Harwin Inc.
Виробник: Harwin Inc.Description: CONN HEADER VERT 10POS 1.25MM
Features: Mating Flange, Mounting Flange, Pick and Place
Packaging: Strip
Connector Type: Header
Voltage Rating: 450V
Current Rating (Amps): 2A
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.193" (4.90mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
на замовлення 21 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 972.77 грн |
| 10+ | 830.37 грн |
Відгуки про товар
Написати відгук
Технічний опис G125-MV11005M1P Harwin Inc.
Description: CONN HEADER VERT 10POS 1.25MM, Features: Mating Flange, Mounting Flange, Pick and Place, Packaging: Strip, Connector Type: Header, Voltage Rating: 450V, Current Rating (Amps): 2A, Mounting Type: Through Hole, Number of Positions: 10, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -65°C ~ 150°C, Contact Type: Male Pin, Fastening Type: Screw Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Green, Pitch - Mating: 0.049" (1.25mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 8.00µin (0.203µm), Contact Finish - Post: Gold, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.118" (3.00mm), Insulation Height: 0.193" (4.90mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free, Row Spacing - Mating: 0.049" (1.25mm).
Інші пропозиції G125-MV11005M1P за ціною від 571.23 грн до 1078.27 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G125-MV11005M1P | Виробник : Harwin |
Power to the Board 1.25MM M 2X5 VERT PCT TAPE |
на замовлення 149 шт: термін постачання 21-30 дні (днів) |
|
