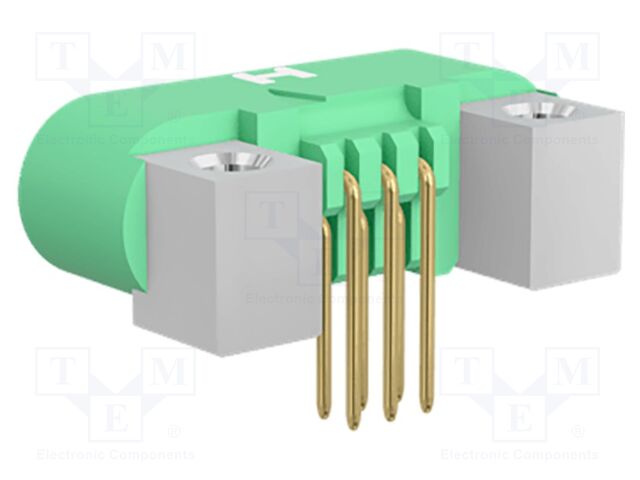

G125-MH10605M4P Harwin Inc.
Виробник: Harwin Inc.
Description: CONN HDR 1.25MM R/A 6POS
Packaging: Strip
Features: Mating Flange, Mounting Flange, Pick and Place, Polarizing Key
Connector Type: Header
Voltage Rating: 450V
Current Rating (Amps): 2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 6
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.209" (5.30mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
Description: CONN HDR 1.25MM R/A 6POS
Packaging: Strip
Features: Mating Flange, Mounting Flange, Pick and Place, Polarizing Key
Connector Type: Header
Voltage Rating: 450V
Current Rating (Amps): 2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 6
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.209" (5.30mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
на замовлення 541 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 1427.91 грн |
10+ | 1204.54 грн |
100+ | 1078.12 грн |
500+ | 928.04 грн |
Відгуки про товар
Написати відгук
Технічний опис G125-MH10605M4P Harwin Inc.
Description: CONN HDR 1.25MM R/A 6POS, Packaging: Strip, Features: Mating Flange, Mounting Flange, Pick and Place, Polarizing Key, Connector Type: Header, Voltage Rating: 450V, Current Rating (Amps): 2A, Mounting Type: Through Hole, Right Angle, Number of Positions: 6, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -65°C ~ 150°C, Contact Type: Male Pin, Fastening Type: Screw Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Green, Pitch - Mating: 0.049" (1.25mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 8.00µin (0.203µm), Contact Finish - Post: Gold, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.130" (3.30mm), Insulation Height: 0.209" (5.30mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free, Row Spacing - Mating: 0.049" (1.25mm).
Інші пропозиції G125-MH10605M4P за ціною від 1146.73 грн до 2226.39 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
G125-MH10605M4P | Виробник : HARWIN |
Description: HARWIN - G125-MH10605M4P - Stiftleiste, Schwarz / Grün, Wire-to-Board, 1.25 mm, 2 Reihe(n), 6 Kontakt(e) tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 6Contacts euEccn: NLR Steckverbindersysteme: Wire-to-Board Produktpalette: Gecko SL G125 productTraceability: No Kontaktanschluss: Durchsteckmontage, abgewinkelt Anzahl der Reihen: 2Reihe(n) Rastermaß: 1.25mm SVHC: No SVHC (23-Jan-2024) |
на замовлення 2 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||
G125-MH10605M4P | Виробник : Harwin | Headers & Wire Housings G125-SL MALE HORIZ PCT W/ BMOUNT 6-WAY |
на замовлення 10 шт: термін постачання 21-30 дні (днів) |
|
|||||||||||||||||
G125-MH10605M4P | Виробник : Harwin | Роз'єм 2-рядний кутовий; Тип конт. = Штирьовий ("тато"); Вид = Вилка; К-сть конт. = 6; Крок, мм = 1,25; Серія = Gecko-SL; Тип монт. = на плату; В-нь між рядами, мм = 1,25; DIP |
на замовлення 1 шт: термін постачання 2-3 дні (днів) |
|
