FTSH-110-01-L-D SAMTEC
![SAMI-S-A0003019604-1.pdf?hkey=6D3A4C79FDBF58556ACFDE234799DDF0](/images/adobe-acrobat.png)

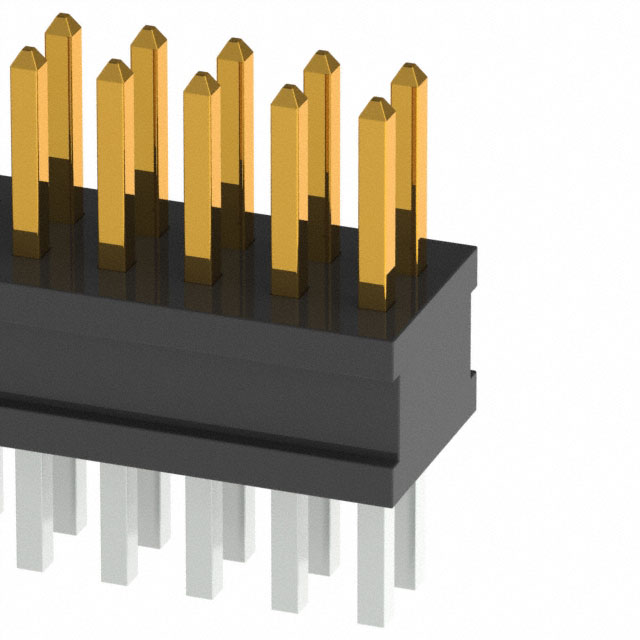

Description: SAMTEC - FTSH-110-01-L-D - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 20 Kontakt(e), Durchsteckmontage
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
usEccn: EAR99
Steckverbinderkragen: Ohne Kragen
Anzahl der Kontakte: 20Contacts
euEccn: NLR
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Produktpalette: FTSH
productTraceability: No
Kontaktanschluss: Durchsteckmontage
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.27mm
SVHC: No SVHC (23-Jan-2024)
на замовлення 40 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
3+ | 341.64 грн |
10+ | 249.39 грн |
Відгуки про товар
Написати відгук
Технічний опис FTSH-110-01-L-D SAMTEC
Description: CONN HEADER VERT 20POS 1.27MM, Packaging: Tube, Connector Type: Header, Cuttable, Current Rating (Amps): 3.4A per Contact, Mounting Type: Through Hole, Number of Positions: 20, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.090" (2.29mm), Insulation Height: 0.099" (2.51mm), Shrouding: Unshrouded, Overall Contact Length: 0.309" (7.86mm), Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.120" (3.05mm).
Інші пропозиції FTSH-110-01-L-D за ціною від 192.56 грн до 367.14 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
FTSH-110-01-L-D | Виробник : Samtec Inc. |
![]() Packaging: Tube Connector Type: Header, Cuttable Current Rating (Amps): 3.4A per Contact Mounting Type: Through Hole Number of Positions: 20 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.090" (2.29mm) Insulation Height: 0.099" (2.51mm) Shrouding: Unshrouded Overall Contact Length: 0.309" (7.86mm) Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 1177 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
![]() |
FTSH-110-01-L-D | Виробник : Samtec |
![]() |
на замовлення 82 шт: термін постачання 21-30 дні (днів) |
