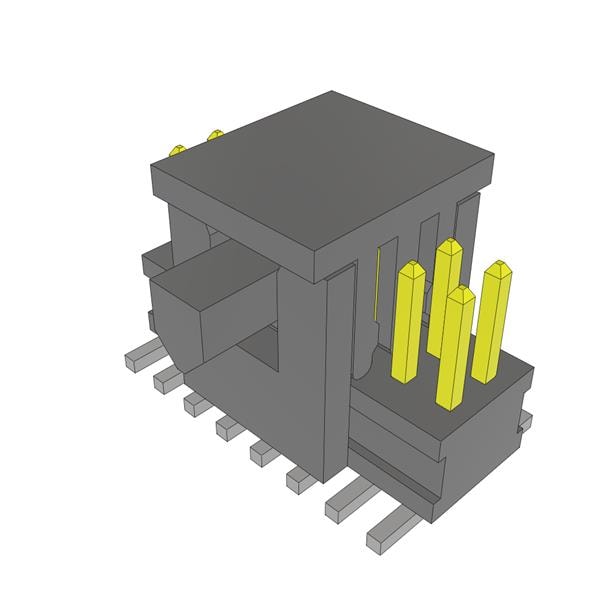

FTSH-108-01-LM-DV-K-P-TR Samtec Inc.
Виробник: Samtec Inc.Description: CONN HEADER SMD 16POS 1.27MM
Features: Keying Shroud, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 16
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.099" (2.51mm)
Shrouding: Shrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 4000 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 500+ | 248.38 грн |
| 1000+ | 204.01 грн |
| 1500+ | 196.97 грн |
| 2500+ | 178.25 грн |
Відгуки про товар
Написати відгук
Технічний опис FTSH-108-01-LM-DV-K-P-TR Samtec Inc.
Description: CONN HEADER SMD 16POS 1.27MM, Features: Keying Shroud, Pick and Place, Packaging: Tape & Reel (TR), Connector Type: Header, Cuttable, Current Rating (Amps): 3.4A per Contact, Mounting Type: Surface Mount, Number of Positions: 16, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.099" (2.51mm), Shrouding: Shrouded, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.120" (3.05mm).
