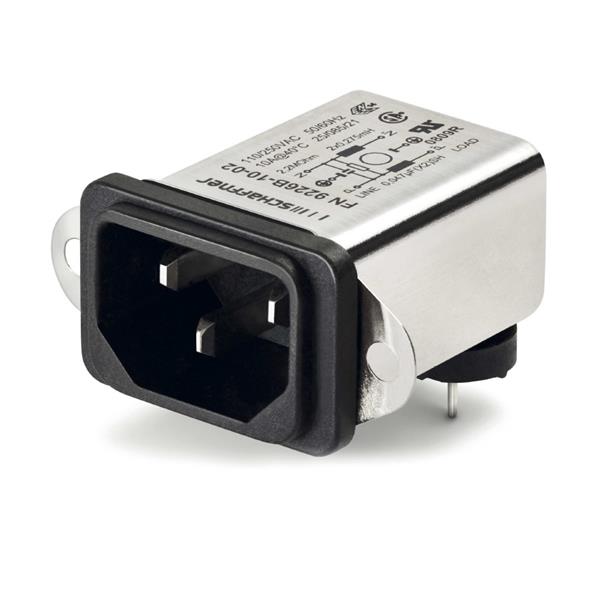

FN9226B-10-02 Schaffner EMC Inc.
Виробник: Schaffner EMC Inc.Description: PWR ENT RCPT IEC320-C14 PNL SLDR
Features: Bleed Resistor
Packaging: Tray
Filter Type: Filtered (EMI, RFI) - Commercial, Medical
Connector Type: Receptacle, Male Blades
Mounting Type: Panel Mount, Flange; Through Hole, Right Angle
Number of Positions: 3
Termination: Solder
Approval Agency: CSA, ENEC, SEMKO, UL
Ingress Protection: IP40
Panel Thickness: 0.224" (5.70mm)
Panel Cutout Dimensions: Rectangular - 34.40mm x 22.60mm
Connector Style: IEC 320-C14
Material Flammability Rating: UL94 V-2
Accomodates a Fuse: No
Part Status: Active
Current Rating - Filter: 10A
на замовлення 120 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 1047.6 грн |
| 10+ | 894.33 грн |
| 25+ | 859.96 грн |
| 40+ | 774.75 грн |
Відгуки про товар
Написати відгук
Технічний опис FN9226B-10-02 Schaffner EMC Inc.
Category: IEC 60320 connectors, Description: Connector: AC supply; socket; male; 10A; 250VAC; C14 (E),EMC/EMI, Type of connector: AC supply, Connector: socket, Kind of connector: male, Current rating: 10A, Connector variant: C14 (E); EMC/EMI, Mechanical mounting: back side of panel; for panel mounting; on PCBs, Operating temperature: -25...85°C, Inductance: 0.27mH, Capacitance Cx: 47nF, Connector series: FN9226, Leakage current: 0A, Resistance: 2.2MΩ, Rated voltage: 250V AC, Design: medical class filter, Conform to the norm: CSA 22.2 No. 8 1986; IEC EN 60939; UL 1283, кількість в упаковці: 200 шт.
Інші пропозиції FN9226B-10-02
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
|---|---|---|---|---|---|
| FN9226B-10-02 | Виробник : SCHAFFNER |
Category: IEC 60320 connectors Description: Connector: AC supply; socket; male; 10A; 250VAC; C14 (E),EMC/EMI Type of connector: AC supply Connector: socket Kind of connector: male Current rating: 10A Connector variant: C14 (E); EMC/EMI Mechanical mounting: back side of panel; for panel mounting; on PCBs Operating temperature: -25...85°C Inductance: 0.27mH Capacitance Cx: 47nF Connector series: FN9226 Leakage current: 0A Resistance: 2.2MΩ Rated voltage: 250V AC Design: medical class filter Conform to the norm: CSA 22.2 No. 8 1986; IEC EN 60939; UL 1283 кількість в упаковці: 200 шт |
товар відсутній |
||
 |
FN9226B-10-02 | Виробник : Schaffner |
AC Power Entry Modules 10A MEDICAL PCB MNT W/EARTH LINE CHOKE |
товар відсутній |
|
| FN9226B-10-02 | Виробник : SCHAFFNER |
Category: IEC 60320 connectors Description: Connector: AC supply; socket; male; 10A; 250VAC; C14 (E),EMC/EMI Type of connector: AC supply Connector: socket Kind of connector: male Current rating: 10A Connector variant: C14 (E); EMC/EMI Mechanical mounting: back side of panel; for panel mounting; on PCBs Operating temperature: -25...85°C Inductance: 0.27mH Capacitance Cx: 47nF Connector series: FN9226 Leakage current: 0A Resistance: 2.2MΩ Rated voltage: 250V AC Design: medical class filter Conform to the norm: CSA 22.2 No. 8 1986; IEC EN 60939; UL 1283 |
товар відсутній |
