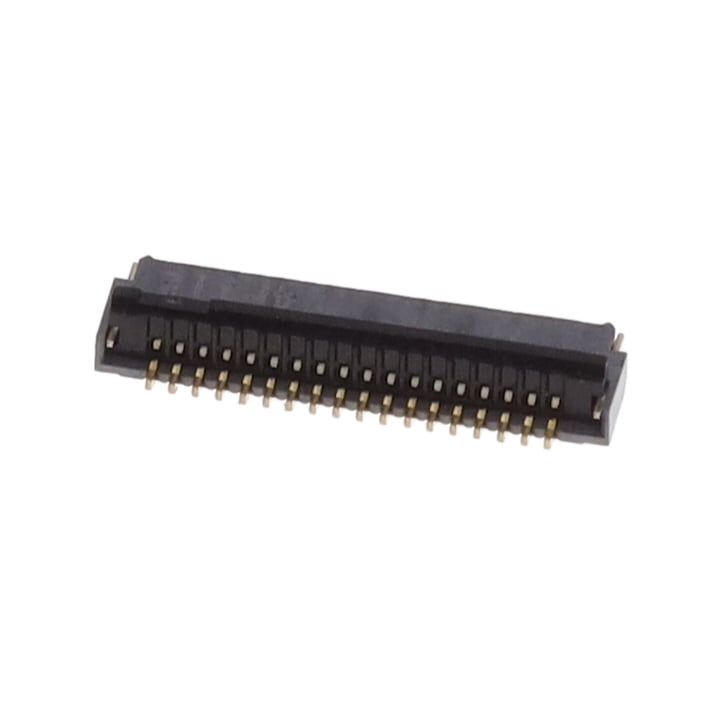

FH34D-16S-0.5SH(50) Hirose Electric Co Ltd
Виробник: Hirose Electric Co LtdDescription: CONN FFC FPC 16POS 0.5MM R/A
Packaging: Tape & Reel (TR)
Features: Solder Retention, Zero Insertion Force (ZIF)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 16
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 105°C
Termination: Solder
Height Above Board: 0.039" (1.00mm)
Locking Feature: Rotary Lock, Backlock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyamide (PA), Nylon
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm
Housing Material: Liquid Crystal Polymer (LCP)
Cable End Type: Tapered
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Top and Bottom
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис FH34D-16S-0.5SH(50) Hirose Electric Co Ltd
Description: CONN FFC FPC 16POS 0.5MM R/A, Packaging: Tape & Reel (TR), Features: Solder Retention, Zero Insertion Force (ZIF), Contact Finish: Gold, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 16, Pitch: 0.020" (0.50mm), Operating Temperature: -55°C ~ 105°C, Termination: Solder, Height Above Board: 0.039" (1.00mm), Locking Feature: Rotary Lock, Backlock, Material Flammability Rating: UL94 V-0, Actuator Material: Polyamide (PA), Nylon, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.30mm, Housing Material: Liquid Crystal Polymer (LCP), Cable End Type: Tapered, Flat Flex Type: FFC, FPC, Connector/Contact Type: Contacts, Top and Bottom.
Інші пропозиції FH34D-16S-0.5SH(50)
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
|---|---|---|---|---|---|
| FH34D-16S-0.5SH(50) | Виробник : Hirose Electric Co Ltd |
Description: CONN FFC FPC 16POS 0.5MM R/A Packaging: Cut Tape (CT) Features: Solder Retention, Zero Insertion Force (ZIF) Contact Finish: Gold Voltage Rating: 50V Mounting Type: Surface Mount, Right Angle Number of Positions: 16 Pitch: 0.020" (0.50mm) Operating Temperature: -55°C ~ 105°C Termination: Solder Height Above Board: 0.039" (1.00mm) Locking Feature: Rotary Lock, Backlock Material Flammability Rating: UL94 V-0 Actuator Material: Polyamide (PA), Nylon Contact Material: Phosphor Bronze FFC, FCB Thickness: 0.30mm Housing Material: Liquid Crystal Polymer (LCP) Cable End Type: Tapered Flat Flex Type: FFC, FPC Connector/Contact Type: Contacts, Top and Bottom |
товар відсутній |
