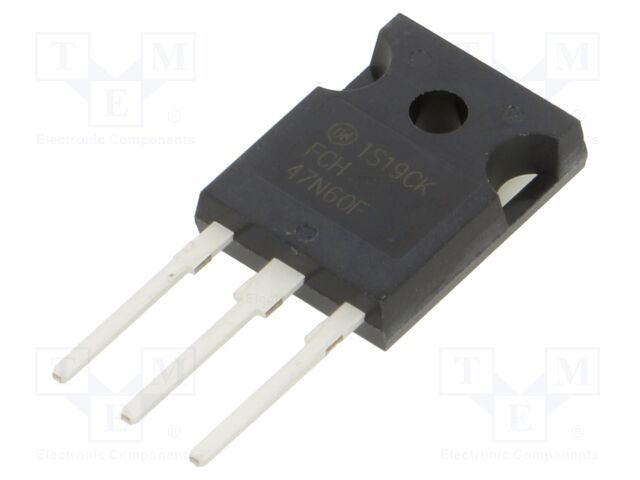

FCH47N60F-F133 ON Semiconductor

Description: MOSFET N-CH 600V 47A TO247-3, Packaging: Tube, Package / Case: TO-247-3, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 47A (Tc), Rds On (Max) @ Id, Vgs: 70mOhm @ 23.5A, 10V, Power Dissipation (Max): 417W (Tc), Vgs(th) (Max) @ Id: 5V @ 250µA, Supplier Device Package: TO-247-3, Part Status: Not For New Designs, Drive Voltage (Max Rds On, Min Rds On): 10V, Vgs (Max): ±30V, Drain to Source Voltage (Vdss): 600 V, Gate Charge (Qg) (Max) @ Vgs: 270 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 8000 pF @ 25 V.
