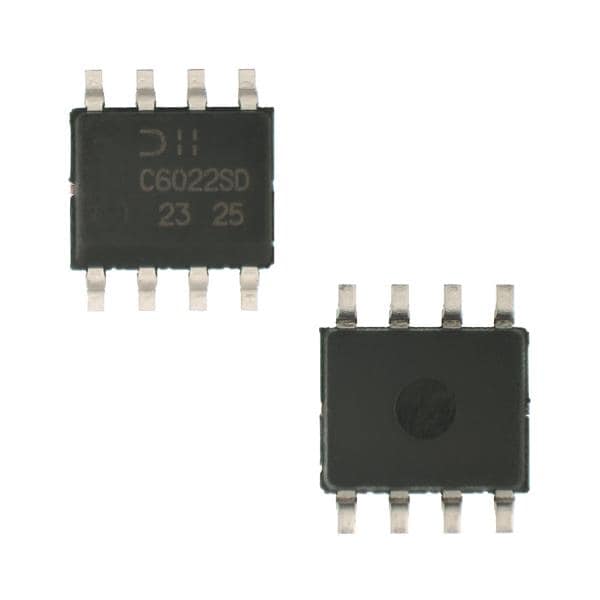

DMC6022SSD-13 Diodes Incorporated
Виробник: Diodes IncorporatedDescription: MOSFET N/P-CH 60V 6A/5A 8SO
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Configuration: N and P-Channel
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 1.5W (Ta)
Drain to Source Voltage (Vdss): 60V
Current - Continuous Drain (Id) @ 25°C: 6A (Ta), 5A (Ta)
Input Capacitance (Ciss) (Max) @ Vds: 2110pF @ 30V, 1525pF @ 30V
Rds On (Max) @ Id, Vgs: 29mOhm @ 5A, 10V, 50mOhm @ 5A, 10V
Gate Charge (Qg) (Max) @ Vgs: 32nC @ 10V, 30.6nC @ 10V
Vgs(th) (Max) @ Id: 3V @ 250µA
Supplier Device Package: 8-SO
Grade: Automotive
Qualification: AEC-Q101
на замовлення 2500 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 2500+ | 28.5 грн |
Відгуки про товар
Написати відгук
Технічний опис DMC6022SSD-13 Diodes Incorporated
Description: MOSFET N/P-CH 60V 6A/5A 8SO, Packaging: Tape & Reel (TR), Package / Case: 8-SOIC (0.154", 3.90mm Width), Mounting Type: Surface Mount, Configuration: N and P-Channel, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), Power - Max: 1.5W (Ta), Drain to Source Voltage (Vdss): 60V, Current - Continuous Drain (Id) @ 25°C: 6A (Ta), 5A (Ta), Input Capacitance (Ciss) (Max) @ Vds: 2110pF @ 30V, 1525pF @ 30V, Rds On (Max) @ Id, Vgs: 29mOhm @ 5A, 10V, 50mOhm @ 5A, 10V, Gate Charge (Qg) (Max) @ Vgs: 32nC @ 10V, 30.6nC @ 10V, Vgs(th) (Max) @ Id: 3V @ 250µA, Supplier Device Package: 8-SO, Grade: Automotive, Qualification: AEC-Q101.
Інші пропозиції DMC6022SSD-13 за ціною від 27.36 грн до 69.09 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DMC6022SSD-13 | Виробник : Diodes Incorporated |
Description: MOSFET N/P-CH 60V 6A/5A 8SO Packaging: Cut Tape (CT) Package / Case: 8-SOIC (0.154", 3.90mm Width) Mounting Type: Surface Mount Configuration: N and P-Channel Operating Temperature: -55°C ~ 150°C (TJ) Technology: MOSFET (Metal Oxide) Power - Max: 1.5W (Ta) Drain to Source Voltage (Vdss): 60V Current - Continuous Drain (Id) @ 25°C: 6A (Ta), 5A (Ta) Input Capacitance (Ciss) (Max) @ Vds: 2110pF @ 30V, 1525pF @ 30V Rds On (Max) @ Id, Vgs: 29mOhm @ 5A, 10V, 50mOhm @ 5A, 10V Gate Charge (Qg) (Max) @ Vgs: 32nC @ 10V, 30.6nC @ 10V Vgs(th) (Max) @ Id: 3V @ 250µA Supplier Device Package: 8-SO Grade: Automotive Qualification: AEC-Q101 |
на замовлення 5553 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
| DMC6022SSD-13 | Виробник : Diodes Zetex |
MOSFET BVDSS: 41V60V SO-8 T&R 2.5K |
товару немає в наявності |
||||||||||||||
| DMC6022SSD-13 | Виробник : Diodes Incorporated |
MOSFET MOSFET BVDSS: 41V~60V SO-8 T&R 2.5K |
товару немає в наявності |
