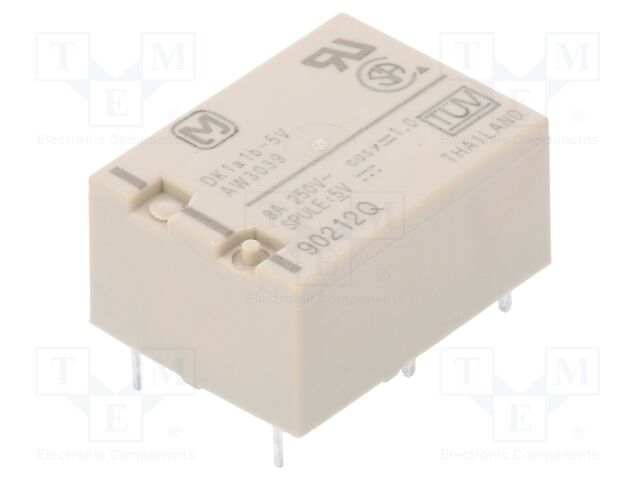

DK1A1B-5V PANASONIC
Виробник: PANASONIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 5VDC; 8A/250VAC
Contacts configuration: SPST-NO + SPST-NC
DC contacts rating @R: 8A / 30V DC
AC contacts rating @R: 8A / 250V AC
Mounting: PCB
Operating temperature: -40...65°C
Contact material: AgNi + Au
Contact plating: gold-plated
Mechanical durability: 50000000 cycles
Coil resistance: 125Ω
Body dimensions: 20x15x9.7mm
Type of relay: electromagnetic
Relay variant: miniature
Relay series: DK
Rated coil voltage: 5V DC
Coil voltage min.: 3.5V DC
Coil power consumption: 200mW
Switched voltage: max. 125V DC; max. 250V AC
Contact current max.: 8A
Coil current: 40mA
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 5VDC; 8A/250VAC
Contacts configuration: SPST-NO + SPST-NC
DC contacts rating @R: 8A / 30V DC
AC contacts rating @R: 8A / 250V AC
Mounting: PCB
Operating temperature: -40...65°C
Contact material: AgNi + Au
Contact plating: gold-plated
Mechanical durability: 50000000 cycles
Coil resistance: 125Ω
Body dimensions: 20x15x9.7mm
Type of relay: electromagnetic
Relay variant: miniature
Relay series: DK
Rated coil voltage: 5V DC
Coil voltage min.: 3.5V DC
Coil power consumption: 200mW
Switched voltage: max. 125V DC; max. 250V AC
Contact current max.: 8A
Coil current: 40mA
на замовлення 150 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 453.12 грн |
3+ | 337.47 грн |
7+ | 319.37 грн |
Відгуки про товар
Написати відгук
Технічний опис DK1A1B-5V PANASONIC
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 5VDC; 8A/250VAC, Contacts configuration: SPST-NO + SPST-NC, DC contacts rating @R: 8A / 30V DC, AC contacts rating @R: 8A / 250V AC, Mounting: PCB, Operating temperature: -40...65°C, Contact material: AgNi + Au, Contact plating: gold-plated, Mechanical durability: 50000000 cycles, Coil resistance: 125Ω, Body dimensions: 20x15x9.7mm, Type of relay: electromagnetic, Relay variant: miniature, Relay series: DK, Rated coil voltage: 5V DC, Coil voltage min.: 3.5V DC, Coil power consumption: 200mW, Switched voltage: max. 125V DC; max. 250V AC, Contact current max.: 8A, Coil current: 40mA, кількість в упаковці: 1 шт.
Інші пропозиції DK1A1B-5V за ціною від 383.24 грн до 800.47 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DK1A1B-5V | Виробник : PANASONIC |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 5VDC; 8A/250VAC Contacts configuration: SPST-NO + SPST-NC DC contacts rating @R: 8A / 30V DC AC contacts rating @R: 8A / 250V AC Mounting: PCB Operating temperature: -40...65°C Contact material: AgNi + Au Contact plating: gold-plated Mechanical durability: 50000000 cycles Coil resistance: 125Ω Body dimensions: 20x15x9.7mm Type of relay: electromagnetic Relay variant: miniature Relay series: DK Rated coil voltage: 5V DC Coil voltage min.: 3.5V DC Coil power consumption: 200mW Switched voltage: max. 125V DC; max. 250V AC Contact current max.: 8A Coil current: 40mA кількість в упаковці: 1 шт |
на замовлення 150 шт: термін постачання 14-21 дні (днів) |
|
|||||||||||||||||||
DK1A1B-5V | Виробник : Panasonic Industrial Devices | General Purpose Relays 8A 5VDC DPST-NO/NC |
на замовлення 493 шт: термін постачання 21-30 дні (днів) |
|
|||||||||||||||||||
DK1A1B-5V | Виробник : Panasonic Electric Works |
Description: RELAY GEN PURPOSE DPST 8A 5V Packaging: Bulk Mounting Type: Through Hole Coil Voltage: 5VDC Operating Temperature: -40°C ~ 65°C Termination Style: PC Pin Approval Agency: CSA, TUV, UR, VDE Relay Type: General Purpose Coil Current: 40 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Material: Silver Nickel (AgNi) Contact Form: DPST-NO/NC (1 Form A, 1 Form B) Contact Rating (Current): 8 A Switching Voltage: 250VAC, 125VDC - Max Must Release Voltage: 0.5 VDC Must Operate Voltage: 3.5 VDC Operate Time: 10 ms Release Time: 8 ms Part Status: Active Load - Max Switching: 2000VA, 1000W |
на замовлення 1099 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||||
DK1A1B-5V | Виробник : Panasonic | Power Relay 5VDC 8A SPST-NO/SPST-NC(20x15x10)mm THT |
на замовлення 5395 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||||
DK1A1B-5V | Виробник : PANASONIC |
Description: PANASONIC - DK1A1B-5V - Leistungsrelais, SPST-NO, SPST-NC, 5 VDC, 8 A, DK, Durchsteckmontage, Monostabil tariffCode: 85364900 rohsCompliant: YES Relaisanschlüsse: PC-Pin hazardous: false rohsPhthalatesCompliant: YES Spulentyp: Monostabil Kontaktmaterial: Silber-Nickel Kontaktstrom: 8A usEccn: EAR99 Spulenwiderstand: 125ohm euEccn: NLR Kontaktspannung V DC: 30V Relaismontage: Durchsteckmontage Produktpalette: DK productTraceability: No Spulenspannung: 5VDC Kontaktkonfiguration: SPST-NO, SPST-NC Kontaktspannung V AC: 250V SVHC: No SVHC (16-Jul-2019) |
на замовлення 397 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||||
DK1A1B-5V | Виробник : Panasonic | Power Relay 5VDC 8A SPST-NO/SPST-NC(20x15x10)mm THT |
товар відсутній |
||||||||||||||||||||
DK1A1B-5V | Виробник : Panasonic Electric Works | Power Relay 5VDC 8A SPST-NO/SPST-NC(20x15x10)mm THT |
товар відсутній |
