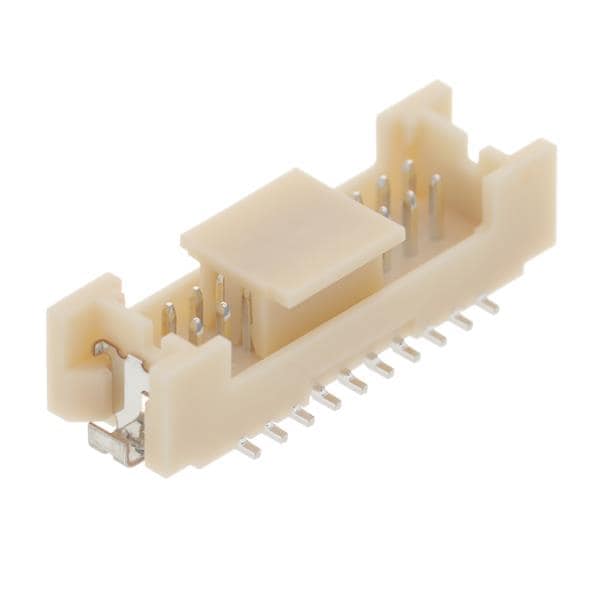

DF13EA-20DP-1.25V(22) Hirose Electric Co Ltd
Виробник: Hirose Electric Co LtdDescription: CONN HEADER SMD 20POS 1.25MM
Features: Solder Retention
Packaging: Tape & Reel (TR)
Connector Type: Header
Voltage Rating: 150VAC/DC
Current Rating (Amps): 1A per Contact
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -35°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Detent Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Beige
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 39.4µin (1.00µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.189" (4.80mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon
Row Spacing - Mating: 0.049" (1.25mm)
Contact Length - Mating: 0.094" (2.40mm)
на замовлення 2000 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1000+ | 41.52 грн |
| 2000+ | 37.48 грн |
Відгуки про товар
Написати відгук
Технічний опис DF13EA-20DP-1.25V(22) Hirose Electric Co Ltd
Description: CONN HEADER SMD 20POS 1.25MM, Features: Solder Retention, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 150VAC/DC, Current Rating (Amps): 1A per Contact, Mounting Type: Surface Mount, Number of Positions: 20, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -35°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Detent Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Beige, Pitch - Mating: 0.049" (1.25mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 39.4µin (1.00µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.189" (4.80mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon, Row Spacing - Mating: 0.049" (1.25mm), Contact Length - Mating: 0.094" (2.40mm).
