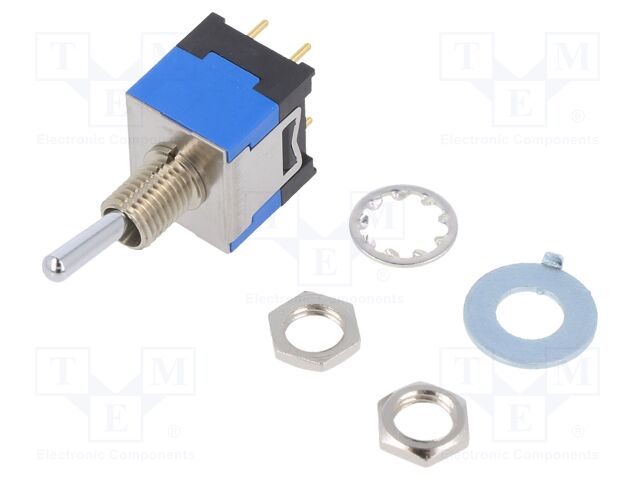

D22022P NKK Switches
Виробник: NKK Switches
Description: SWITCH TOGGLE DPDT 0.4VA 48V
Packaging: Bulk
Current Rating (Amps): 0.4VA (AC/DC)
Mounting Type: Panel Mount
Circuit: DPDT
Switch Function: On-On
Operating Temperature: -10°C ~ 70°C
Termination Style: PC Pin
Illumination: Non-Illuminated
Bushing Thread: M6 x 0.75
Actuator Length: 10.50mm
Actuator Type: Standard Round
Panel Cutout Dimensions: Circular - 6.50mm Dia
Part Status: Active
Voltage Rating - AC: 48 V
Voltage Rating - DC: 48 V
Description: SWITCH TOGGLE DPDT 0.4VA 48V
Packaging: Bulk
Current Rating (Amps): 0.4VA (AC/DC)
Mounting Type: Panel Mount
Circuit: DPDT
Switch Function: On-On
Operating Temperature: -10°C ~ 70°C
Termination Style: PC Pin
Illumination: Non-Illuminated
Bushing Thread: M6 x 0.75
Actuator Length: 10.50mm
Actuator Type: Standard Round
Panel Cutout Dimensions: Circular - 6.50mm Dia
Part Status: Active
Voltage Rating - AC: 48 V
Voltage Rating - DC: 48 V
на замовлення 69 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 462.86 грн |
Відгуки про товар
Написати відгук
Технічний опис D22022P NKK Switches
Category: Toggle Switches, Description: Switch: toggle; Pos: 2; DPDT; ON-ON; 0.1A/48VAC; 0.1A/48VDC; 10.5mm, Illumination: none, Operating temperature: -10...70°C, Manufacturer series: D2, Leads: for soldering; straight, Number of terminals: 6, Electrical life: 50000 cycles, Body material: polyamide, Poles number: 2, Contact material: brass, Type of switch: toggle, Contacts configuration: DPDT, AC contacts rating @R: 0.1A / 48V AC, DC contacts rating @R: 0.1A / 48V DC, Switching method: ON-ON, Stable positions number: 2, Actuator material: brass, Kind of toggle: round, Lever length: 10.5mm, Lever plating: chromium, Number of positions: 2, Mounting: on panel; THT, Contact plating: gold-plated, Mechanical durability: 100000 cycles, Max. contact resistance:: 50mΩ, Min. insulation resistance: 1GΩ, Terminal pitch: 5.08mm, кількість в упаковці: 1 шт.
Інші пропозиції D22022P за ціною від 435.73 грн до 718.85 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D22022P | Виробник : NKK Switches | Toggle Switches SWITCH ROTARY |
на замовлення 17 шт: термін постачання 21-30 дні (днів) |
|
|||||||||||||||||
D22022P | Виробник : NKK Switches | Switch Toggle ON None ON DPDT Bat Lever PC Pins 0.1A 48VAC 48VDC 0.4VA PC Mount with Threads |
товар відсутній |
||||||||||||||||||
D2-2022P | Виробник : NKK Switches | Switch Toggle ON None ON DPDT Bat Lever PC Pins 0.1A 48VAC 48VDC 0.4VA PC Mount with Threads |
товар відсутній |
||||||||||||||||||
D22022P | Виробник : NKK SWITCHES |
Category: Toggle Switches Description: Switch: toggle; Pos: 2; DPDT; ON-ON; 0.1A/48VAC; 0.1A/48VDC; 10.5mm Illumination: none Operating temperature: -10...70°C Manufacturer series: D2 Leads: for soldering; straight Number of terminals: 6 Electrical life: 50000 cycles Body material: polyamide Poles number: 2 Contact material: brass Type of switch: toggle Contacts configuration: DPDT AC contacts rating @R: 0.1A / 48V AC DC contacts rating @R: 0.1A / 48V DC Switching method: ON-ON Stable positions number: 2 Actuator material: brass Kind of toggle: round Lever length: 10.5mm Lever plating: chromium Number of positions: 2 Mounting: on panel; THT Contact plating: gold-plated Mechanical durability: 100000 cycles Max. contact resistance:: 50mΩ Min. insulation resistance: 1GΩ Terminal pitch: 5.08mm кількість в упаковці: 1 шт |
товар відсутній |
||||||||||||||||||
D22022P | Виробник : NKK SWITCHES |
Category: Toggle Switches Description: Switch: toggle; Pos: 2; DPDT; ON-ON; 0.1A/48VAC; 0.1A/48VDC; 10.5mm Illumination: none Operating temperature: -10...70°C Manufacturer series: D2 Leads: for soldering; straight Number of terminals: 6 Electrical life: 50000 cycles Body material: polyamide Poles number: 2 Contact material: brass Type of switch: toggle Contacts configuration: DPDT AC contacts rating @R: 0.1A / 48V AC DC contacts rating @R: 0.1A / 48V DC Switching method: ON-ON Stable positions number: 2 Actuator material: brass Kind of toggle: round Lever length: 10.5mm Lever plating: chromium Number of positions: 2 Mounting: on panel; THT Contact plating: gold-plated Mechanical durability: 100000 cycles Max. contact resistance:: 50mΩ Min. insulation resistance: 1GΩ Terminal pitch: 5.08mm |
товар відсутній |
