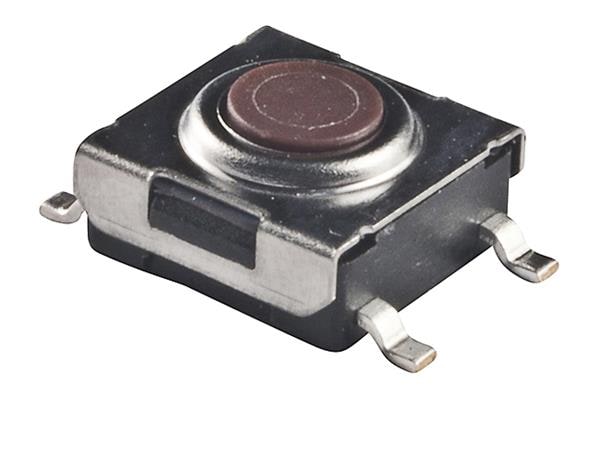

![CB315FP CB315FP](https://www.mouser.com/images/nkkswitches/lrg/cb315fp_DFI_SPL.jpg)
на замовлення 213 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
3+ | 113.15 грн |
50+ | 100.05 грн |
100+ | 79.16 грн |
300+ | 74.17 грн |
500+ | 73.45 грн |
Відгуки про товар
Написати відгук

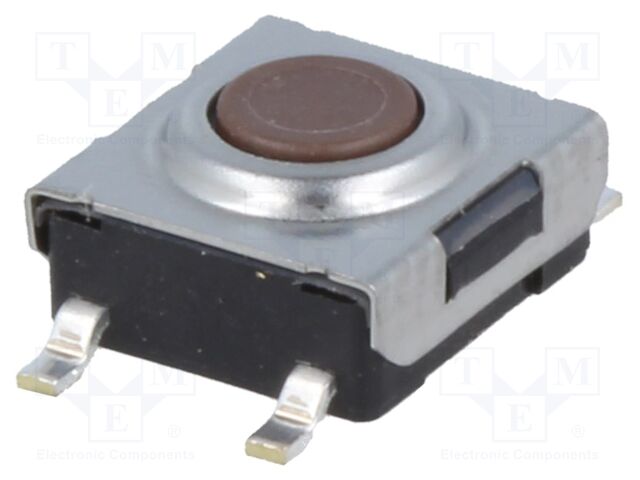

Технічний опис CB315FP NKK Switches
Category: Microswitches TACT, Description: Microswitch TACT; SPST; Pos: 2; 0.05A/24VDC; 1.57N; 6.2x6.2x3.1mm, Operating temperature: -25...70°C, Max. contact resistance:: 100mΩ, Mechanical durability: 100000 cycles, Manufacturer series: CB3, Leads: for soldering, Operating Force: 1.57N, Body dimensions: 6.2x6.2x3.1mm, Switching method: (ON)-OFF, Min. insulation resistance: 0.1GΩ, Electrical life: 100000 cycles, Number of positions: 2, Button shape: round, Type of switch: microswitch TACT, DC contacts rating @R: 50mA / 24V DC, Contacts configuration: SPST, Stable positions number: 1, кількість в упаковці: 1 шт.
Інші пропозиції CB315FP за ціною від 65.23 грн до 122.66 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
CB315FP | Виробник : NKK Switches |
![]() Packaging: Tray Features: Sealed - Fully Mounting Type: Surface Mount Circuit: SPST-NO Switch Function: Off-Mom Operating Temperature: -25°C ~ 70°C Termination Style: Gull Wing Illumination: Non-Illuminated Contact Rating @ Voltage: 0.05A @ 24VDC Actuator Type: Standard Operating Force: 157gf Outline: 6.20mm x 6.20mm Actuator Height off PCB, Vertical: 3.10mm Actuator Orientation: Top Actuated Part Status: Active |
на замовлення 1885 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
![]() |
CB315FP | Виробник : NKK SWITCHES |
![]() Description: Microswitch TACT; SPST; Pos: 2; 0.05A/24VDC; 1.57N; 6.2x6.2x3.1mm Operating temperature: -25...70°C Max. contact resistance:: 100mΩ Mechanical durability: 100000 cycles Manufacturer series: CB3 Leads: for soldering Operating Force: 1.57N Body dimensions: 6.2x6.2x3.1mm Switching method: (ON)-OFF Min. insulation resistance: 0.1GΩ Electrical life: 100000 cycles Number of positions: 2 Button shape: round Type of switch: microswitch TACT DC contacts rating @R: 50mA / 24V DC Contacts configuration: SPST Stable positions number: 1 кількість в упаковці: 1 шт |
товар відсутній |
|||||||||||||||||
![]() |
CB315FP | Виробник : NKK SWITCHES |
![]() Description: Microswitch TACT; SPST; Pos: 2; 0.05A/24VDC; 1.57N; 6.2x6.2x3.1mm Operating temperature: -25...70°C Max. contact resistance:: 100mΩ Mechanical durability: 100000 cycles Manufacturer series: CB3 Leads: for soldering Operating Force: 1.57N Body dimensions: 6.2x6.2x3.1mm Switching method: (ON)-OFF Min. insulation resistance: 0.1GΩ Electrical life: 100000 cycles Number of positions: 2 Button shape: round Type of switch: microswitch TACT DC contacts rating @R: 50mA / 24V DC Contacts configuration: SPST Stable positions number: 1 |
товар відсутній |
