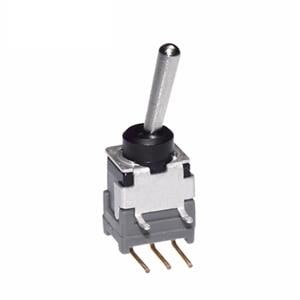

B13AH NKK Switches
Виробник: NKK Switches
Description: SWITCH TOGGLE SPDT 0.4VA 28V
Packaging: Tray
Features: Epoxy Sealed Terminals
Current Rating (Amps): 0.4VA (AC/DC)
Mounting Type: Through Hole, Right Angle
Circuit: SPDT
Switch Function: On-Off-On
Operating Temperature: -30°C ~ 85°C
Termination Style: PC Pin
Illumination: Non-Illuminated
Bushing Thread: Unthreaded
Actuator Length: 10.00mm
Actuator Type: Standard Round
Part Status: Active
Voltage Rating - AC: 28 V
Voltage Rating - DC: 28 V
Description: SWITCH TOGGLE SPDT 0.4VA 28V
Packaging: Tray
Features: Epoxy Sealed Terminals
Current Rating (Amps): 0.4VA (AC/DC)
Mounting Type: Through Hole, Right Angle
Circuit: SPDT
Switch Function: On-Off-On
Operating Temperature: -30°C ~ 85°C
Termination Style: PC Pin
Illumination: Non-Illuminated
Bushing Thread: Unthreaded
Actuator Length: 10.00mm
Actuator Type: Standard Round
Part Status: Active
Voltage Rating - AC: 28 V
Voltage Rating - DC: 28 V
на замовлення 4175 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 390.34 грн |
10+ | 335.4 грн |
25+ | 317.5 грн |
40+ | 287.26 грн |
80+ | 273.52 грн |
230+ | 261.29 грн |
440+ | 234.46 грн |
945+ | 222.44 грн |
Відгуки про товар
Написати відгук
Технічний опис B13AH NKK Switches
Category: Toggle Switches, Description: Switch: toggle; Pos: 3; SP3T; ON-OFF-ON; 0.1A/28VAC; 0.1A/28VDC, Type of switch: toggle, Contacts configuration: SP3T, AC contacts rating @R: 0.1A / 28V AC, DC contacts rating @R: 0.1A / 28V DC, Max. contact resistance:: 50mΩ, Switching method: ON-OFF-ON, Number of positions: 3, Stable positions number: 3, Leads: angled; for soldering, Body dimensions: 8.8x13.88x7.3mm, Mechanical durability: 100000 cycles, Operating temperature: -30...85°C, Operating Force: 1.18N, Lever length: 10mm, Electrical life: 50000 cycles, Contact plating: gold-plated, Min. insulation resistance: 500MΩ, Terminal pitch: 2.54mm, Contact material: copper, Body material: polyamide, Mounting: THT, Actuator material: brass, Illumination: none, Manufacturer series: B, Number of terminals: 3, Poles number: 1, Kind of material: fiber glass reinforced, Kind of toggle: round.
Інші пропозиції B13AH
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
---|---|---|---|---|---|
B13AH | Виробник : NKK Switches | Switch Toggle ON OFF ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket |
товар відсутній |
||
B13AH | Виробник : NKK SWITCHES |
Category: Toggle Switches Description: Switch: toggle; Pos: 3; SP3T; ON-OFF-ON; 0.1A/28VAC; 0.1A/28VDC Type of switch: toggle Contacts configuration: SP3T AC contacts rating @R: 0.1A / 28V AC DC contacts rating @R: 0.1A / 28V DC Max. contact resistance:: 50mΩ Switching method: ON-OFF-ON Number of positions: 3 Stable positions number: 3 Leads: angled; for soldering Body dimensions: 8.8x13.88x7.3mm Mechanical durability: 100000 cycles Operating temperature: -30...85°C Operating Force: 1.18N Lever length: 10mm Electrical life: 50000 cycles Contact plating: gold-plated Min. insulation resistance: 500MΩ Terminal pitch: 2.54mm Contact material: copper Body material: polyamide Mounting: THT Actuator material: brass Illumination: none Manufacturer series: B Number of terminals: 3 Poles number: 1 Kind of material: fiber glass reinforced Kind of toggle: round |
товар відсутній |
||
B13AH | Виробник : NKK Switches | Toggle Switches SPDT .394 BAT RIGHT ANGLE |
товар відсутній |
||
B13AH | Виробник : NKK SWITCHES |
Category: Toggle Switches Description: Switch: toggle; Pos: 3; SP3T; ON-OFF-ON; 0.1A/28VAC; 0.1A/28VDC Type of switch: toggle Contacts configuration: SP3T AC contacts rating @R: 0.1A / 28V AC DC contacts rating @R: 0.1A / 28V DC Max. contact resistance:: 50mΩ Switching method: ON-OFF-ON Number of positions: 3 Stable positions number: 3 Leads: angled; for soldering Body dimensions: 8.8x13.88x7.3mm Mechanical durability: 100000 cycles Operating temperature: -30...85°C Operating Force: 1.18N Lever length: 10mm Electrical life: 50000 cycles Contact plating: gold-plated Min. insulation resistance: 500MΩ Terminal pitch: 2.54mm Contact material: copper Body material: polyamide Mounting: THT Actuator material: brass Illumination: none Manufacturer series: B Number of terminals: 3 Poles number: 1 Kind of material: fiber glass reinforced Kind of toggle: round |
товар відсутній |
