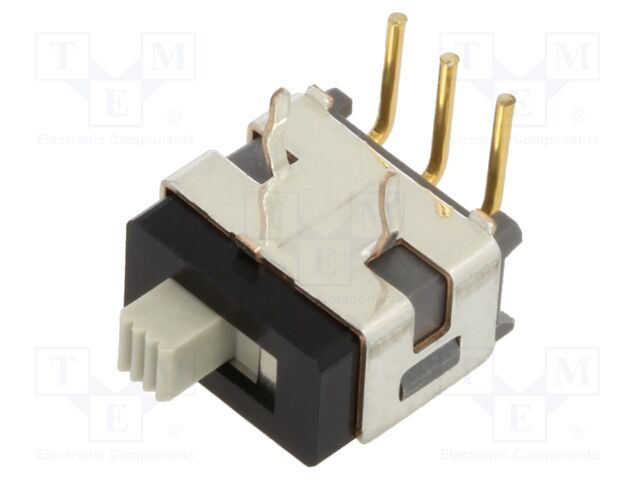

AS12AH NKK SWITCHES
Виробник: NKK SWITCHESCategory: Slide Switches
Description: Switch: slide; Pos: 2; SPDT; 0.1A/28VAC; 0.1A/28VDC; ON-ON; PCB,THT
Mounting: PCB; THT
Operating temperature: -30...85°C
Number of terminals: 3
Manufacturer series: AS
Poles number: 1
Contact material: phosphor bronze
Type of switch: slide
Contacts configuration: SPDT
AC contacts rating @R: 0.1A / 28V AC
DC contacts rating @R: 0.1A / 28V DC
Switching method: ON-ON
Stable positions number: 2
Operating Force: 2.55N
Illumination: none
Body colour: black
Key stroke: 2.5mm
Number of positions: 2
Kind of material: fiber glass reinforced
Contact plating: gold-plated
Mechanical durability: 50000 cycles
Max. contact resistance:: 50mΩ
Min. insulation resistance: 500MΩ
Terminal pitch: 2.54mm
Body dimensions: 9.8x9.9x6.18mm
Leads: angled; for soldering
Electrical life: 50000 cycles
Body material: polyamide; POM
на замовлення 87 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 349.6 грн |
| 4+ | 239 грн |
| 11+ | 225.96 грн |
Відгуки про товар
Написати відгук
Технічний опис AS12AH NKK SWITCHES
Category: Slide Switches, Description: Switch: slide; Pos: 2; SPDT; 0.1A/28VAC; 0.1A/28VDC; ON-ON; PCB,THT, Mounting: PCB; THT, Operating temperature: -30...85°C, Number of terminals: 3, Manufacturer series: AS, Poles number: 1, Contact material: phosphor bronze, Type of switch: slide, Contacts configuration: SPDT, AC contacts rating @R: 0.1A / 28V AC, DC contacts rating @R: 0.1A / 28V DC, Switching method: ON-ON, Stable positions number: 2, Operating Force: 2.55N, Illumination: none, Body colour: black, Key stroke: 2.5mm, Number of positions: 2, Kind of material: fiber glass reinforced, Contact plating: gold-plated, Mechanical durability: 50000 cycles, Max. contact resistance:: 50mΩ, Min. insulation resistance: 500MΩ, Terminal pitch: 2.54mm, Body dimensions: 9.8x9.9x6.18mm, Leads: angled; for soldering, Electrical life: 50000 cycles, Body material: polyamide; POM, кількість в упаковці: 1 шт.
Інші пропозиції AS12AH за ціною від 176.56 грн до 419.52 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AS12AH | Виробник : NKK Switches |
Slide Switches SPDT ON-ON .098" BKT RA W/BRACKET |
на замовлення 122 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||||||
 |
AS12AH | Виробник : NKK Switches |
Description: SWITCH SLIDE SPDT 0.4VA 28V Packaging: Tray Features: Epoxy Sealed Terminals Contact Finish: Gold Current Rating (Amps): 0.4VA (AC/DC) Mounting Type: Through Hole, Right Angle Circuit: SPDT Switch Function: On-On Operating Temperature: -30°C ~ 85°C Termination Style: PC Pin Actuator Length: 2.50mm Actuator Type: Standard Contact Material: Phosphor Bronze Contact Timing: Non-Shorting (BBM) Voltage Rating - AC: 28 V Voltage Rating - DC: 28 V |
на замовлення 16137 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
|
|
AS12AH | Виробник : NKK SWITCHES |
Category: Slide Switches Description: Switch: slide; Pos: 2; SPDT; 0.1A/28VAC; 0.1A/28VDC; ON-ON; PCB,THT Mounting: PCB; THT Operating temperature: -30...85°C Number of terminals: 3 Manufacturer series: AS Poles number: 1 Contact material: phosphor bronze Type of switch: slide Contacts configuration: SPDT AC contacts rating @R: 0.1A / 28V AC DC contacts rating @R: 0.1A / 28V DC Switching method: ON-ON Stable positions number: 2 Operating Force: 2.55N Illumination: none Body colour: black Key stroke: 2.5mm Number of positions: 2 Kind of material: fiber glass reinforced Contact plating: gold-plated Mechanical durability: 50000 cycles Max. contact resistance:: 50mΩ Min. insulation resistance: 500MΩ Terminal pitch: 2.54mm Body dimensions: 9.8x9.9x6.18mm Leads: angled; for soldering Electrical life: 50000 cycles Body material: polyamide; POM кількість в упаковці: 1 шт |
на замовлення 87 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||||||||
 |
AS12AH | Виробник : NKK Switches |
Switch Slide ON None ON SPDT Side Slide 0.1A 28VAC 28VDC 0.4VA 50000Cycles PC Pins Bracket Mount/Through Hole |
товар відсутній |
|||||||||||||||||||
 |
AS12AH | Виробник : NKK Switches |
Switch Slide ON None ON SPDT Side Slide 0.1A 28VAC 28VDC 0.4VA 50000Cycles PC Pins Bracket Mount/Through Hole |
товар відсутній |
|||||||||||||||||||
|
|
AS12AH | Виробник : NKK Switches |
Switch Slide ON None ON SPDT Side Slide 0.1A 28VAC 28VDC 0.4VA 50000Cycles PC Pins Bracket Mount/Through Hole |
товар відсутній |
