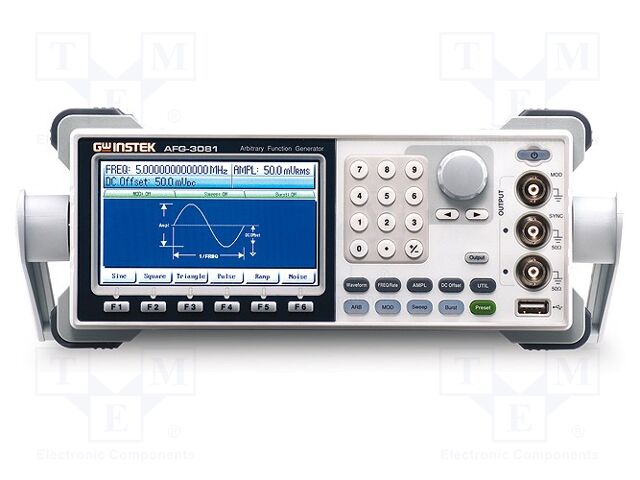

AFG-3081 GW INSTEK
![AFG-3051.pdf](/images/adobe-acrobat.png)
Category: Generators and Frequency Meters
Description: Generator: arbitrary, function; 80MHz; LCD TFT 4,3"; 480x272
Supply voltage: 100...240V AC
Type of generator: arbitrary, function
Interface: GPIB; RS232; USB
Number of channels: 1
Display resolution: 480x272
Dimensions: 265x107x374mm
Standard equipment: mains cable; test lead
Measuring instrument features: 10 runs memory
Sampling: 200Msps
Waveform frequency range: 1µHz...1MHz (ramp waveform); 1µHz...1MHz (triangle waveform); 1µHz...80MHz (rectangular waveform); 1µHz...80MHz (sinus waveform)
Output parameters: impedance: 50Ω
Vertical resolution: 16bit
Kind of modulation: AM; FM; FSK; PM
Plug variant: EU
Waveforms: arbitrary; impulse; noise; ramp; rectangular; sinus
Maximum waveform frequency: 80MHz
Software: LabVIEW
Memory record length: 1Mpts
Kind of display used: LCD TFT 4,3"
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис AFG-3081 GW INSTEK
Category: Generators and Frequency Meters, Description: Generator: arbitrary, function; 80MHz; LCD TFT 4,3"; 480x272, Supply voltage: 100...240V AC, Type of generator: arbitrary, function, Interface: GPIB; RS232; USB, Number of channels: 1, Display resolution: 480x272, Dimensions: 265x107x374mm, Standard equipment: mains cable; test lead, Measuring instrument features: 10 runs memory, Sampling: 200Msps, Waveform frequency range: 1µHz...1MHz (ramp waveform); 1µHz...1MHz (triangle waveform); 1µHz...80MHz (rectangular waveform); 1µHz...80MHz (sinus waveform), Output parameters: impedance: 50Ω, Vertical resolution: 16bit, Kind of modulation: AM; FM; FSK; PM, Plug variant: EU, Waveforms: arbitrary; impulse; noise; ramp; rectangular; sinus, Maximum waveform frequency: 80MHz, Software: LabVIEW, Memory record length: 1Mpts, Kind of display used: LCD TFT 4,3", кількість в упаковці: 1 шт.
