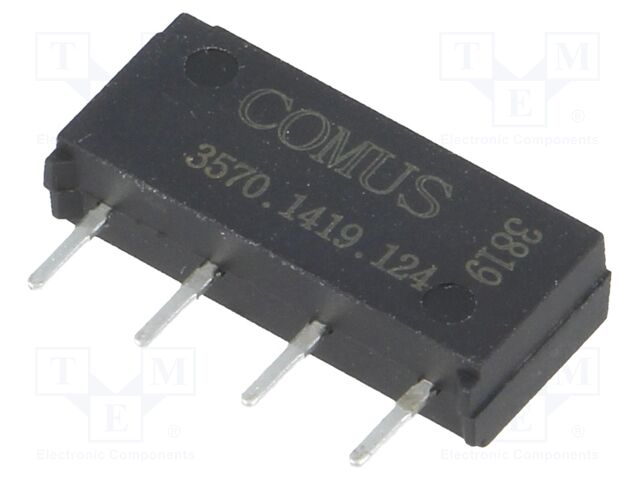

3570.1419.124 COMUS
Виробник: COMUS
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W
Type of relay: reed switch
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 0.5A
Switched voltage: max. 200V DC
Switching capacity: 10W
Coil resistance: 1kΩ
Mounting: THT
Relay series: 3570
Case: SIP
Contact resistance: 0.15Ω
Coil voltage min.: 9V DC
Coil voltage max.: 16V DC
Operating temperature: -40...85°C
Relay features: high reliability
Body dimensions: 15.24x6.98x3.81mm
Terminal pitch: 3.81mm
Optional equipment: diode; electrostatic shield
кількість в упаковці: 1 шт
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W
Type of relay: reed switch
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 0.5A
Switched voltage: max. 200V DC
Switching capacity: 10W
Coil resistance: 1kΩ
Mounting: THT
Relay series: 3570
Case: SIP
Contact resistance: 0.15Ω
Coil voltage min.: 9V DC
Coil voltage max.: 16V DC
Operating temperature: -40...85°C
Relay features: high reliability
Body dimensions: 15.24x6.98x3.81mm
Terminal pitch: 3.81mm
Optional equipment: diode; electrostatic shield
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис 3570.1419.124 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W, Type of relay: reed switch, Contacts configuration: SPST-NO, Rated coil voltage: 12V DC, Contact current max.: 0.5A, Switched voltage: max. 200V DC, Switching capacity: 10W, Coil resistance: 1kΩ, Mounting: THT, Relay series: 3570, Case: SIP, Contact resistance: 0.15Ω, Coil voltage min.: 9V DC, Coil voltage max.: 16V DC, Operating temperature: -40...85°C, Relay features: high reliability, Body dimensions: 15.24x6.98x3.81mm, Terminal pitch: 3.81mm, Optional equipment: diode; electrostatic shield, кількість в упаковці: 1 шт.
